Replacing the grinder knives
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow the procedure below to replace the grinder knives:

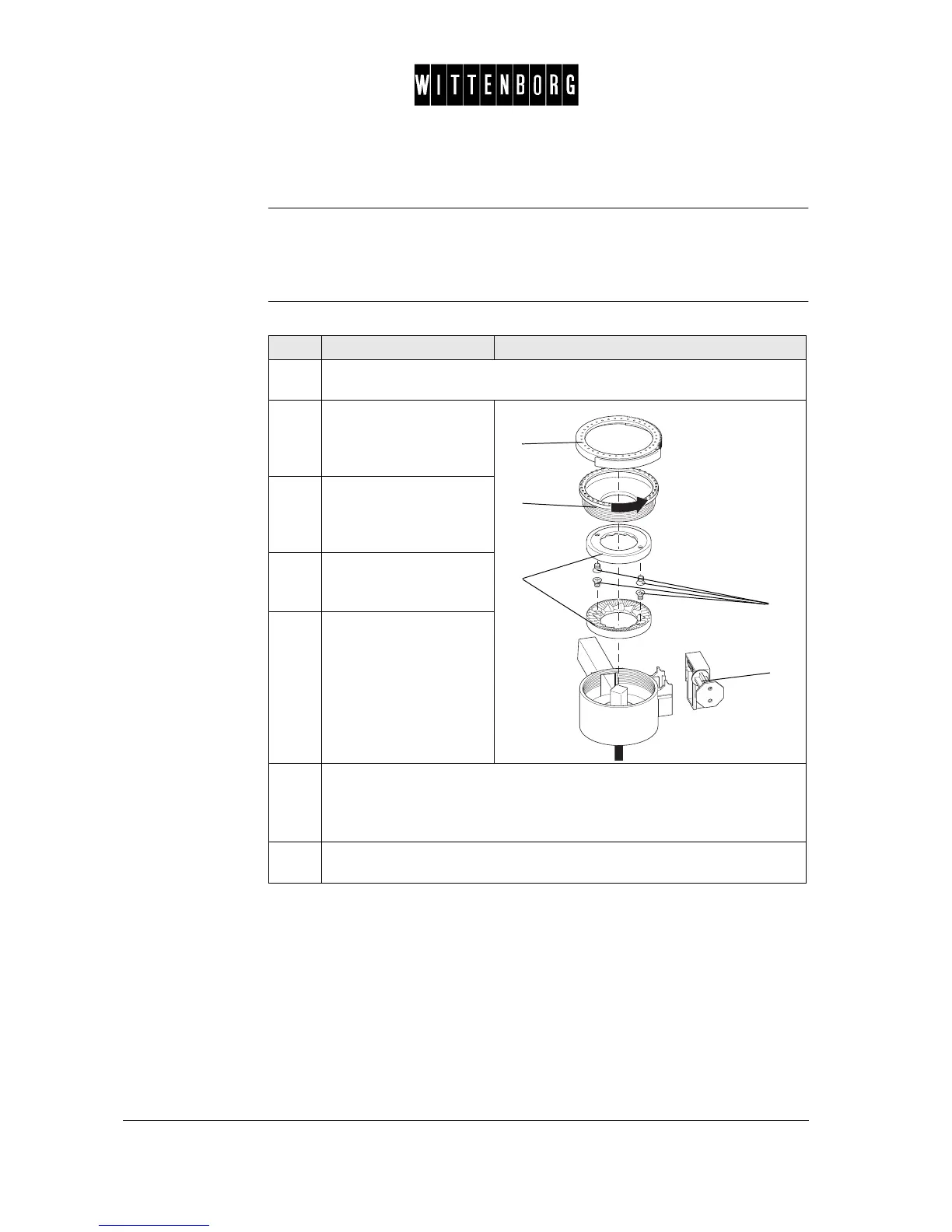

Step Action Illustration
1.
Remove waste bucket, coffee bean canister, espresso brewer, water
system cover and grinder.
2.
Dismount adjusting
wheel (1) by releasing
the hooks situated under
wheel.
3.
Remove adjusting ring
(2) by releasing the
hooks situated under
ring.
4.
Remove metal ring (3)
by turning it anti-
clockwise.
5.
Remove knives (4) by
removing four screws
(5).
6.
Mount new grinder knives and reassemble in reverse order.
Note: Reposition adjusting ring in same position as it was before it was
dismounted.
7.
Always adjust the setting of the grinder when the grinder knives have
been replaced. Refer to “Setting the coffee grinder (coarse/fine grind)”.
1
2
4
3
5
