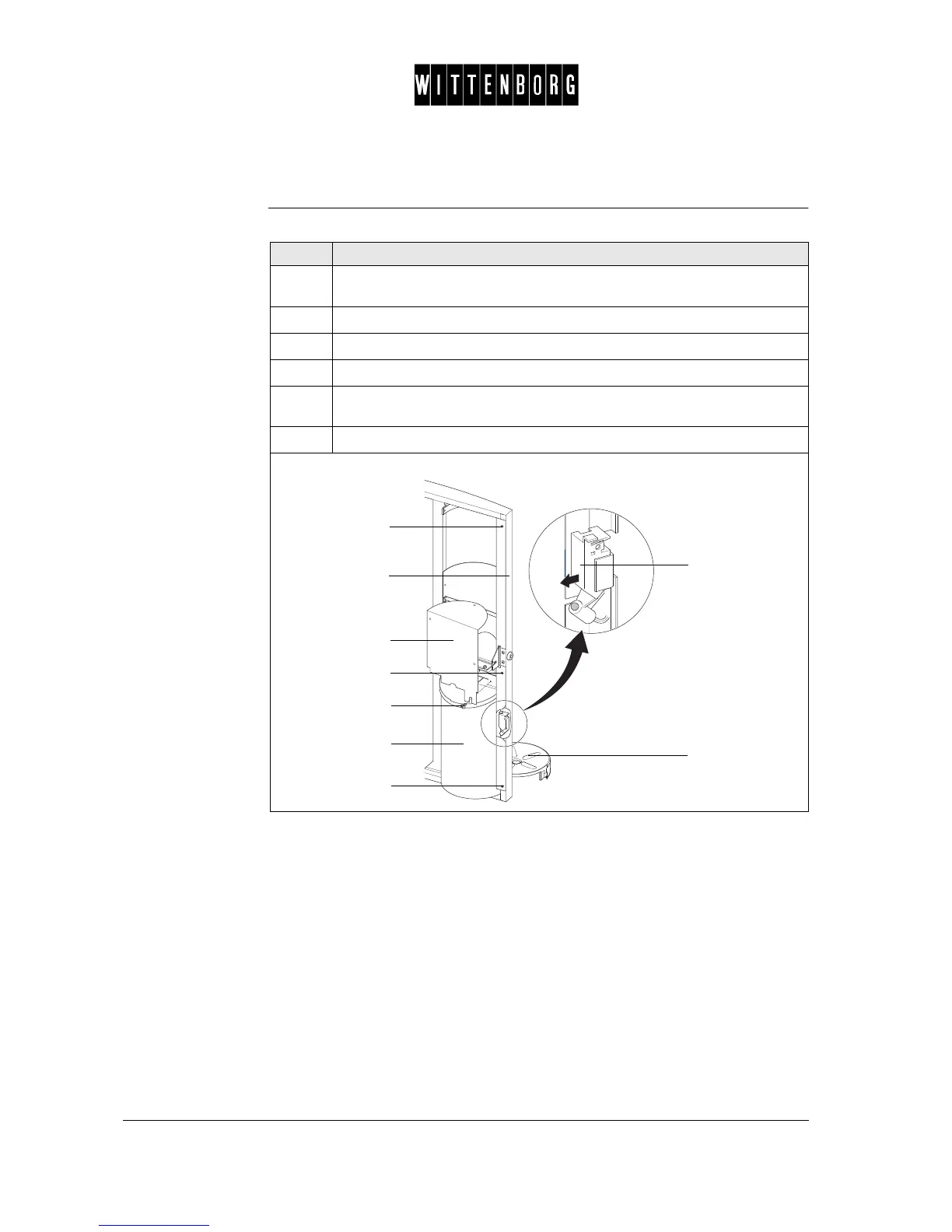

Dismounting the cup sensor
Procedure Follow this procedure to dismount the cup sensor:
Step Action
1.
Open the cabinet door, turn off machine (main switch), unplug the power
supply plug and close the water cock.
2.
Dismount the cover (3) by loosening the screw (4)
3.
Remove the pot platform (6)
4.
Dismount the delivery area inner cover (7)
5.
Dismount the trim bracket (2) by loosening the screws (1) at the top and
bottom
6.
Dismount the cup sensor (5)
1
1
1
3
2
4
5
6
7
