4
Dimensional
drawing

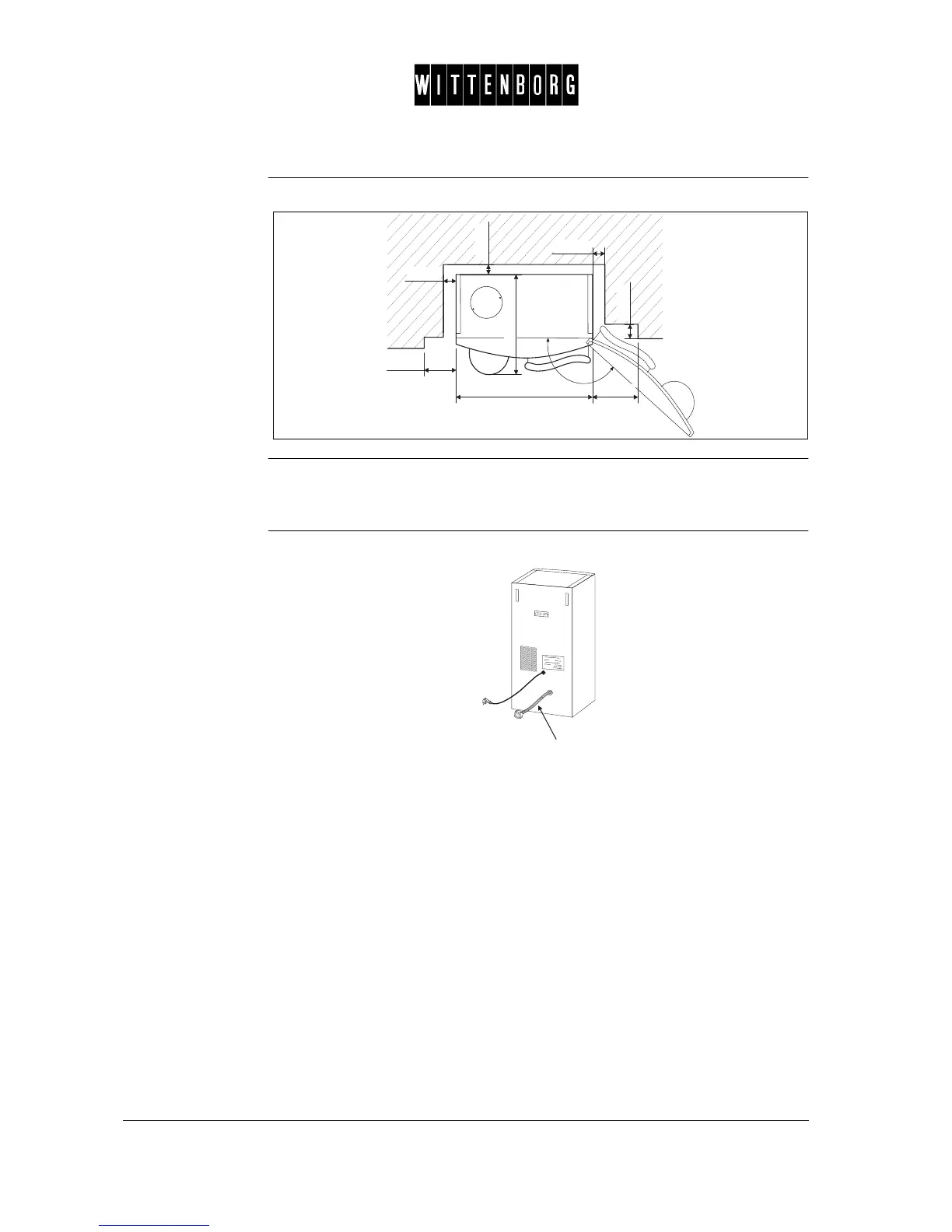

This drawing shows the requisite clearances:
Overflow water The vending machine requires no connection to outlet or drain (automati-
cally controlled drip tray installed).
Water supply The vending machine must be connected to a drinking water supply.
Minimum dynamic pressure must be 0.8 bar . Maximum static pressure
must not exceed 10 bar. At a higher pressure (also periodically) a reduction
valve must be mounted in the water pipe.
Only UK: The vending machine is fitted with flexible pipe terminating in
1/4 BSP female fitting. By means of the adapter supplied connection
should be made to 15 mm copper pipe controlled by a stop cock which
must be easily accessible.
Other countries: The vending machine is fitted with a connecting hose ter-
minating in 3/4" - 3/8" reducing nipple. Connection should be made to an
inlet terminating in a 3/8" P.Thr.id.
For safety reasons install a water stop valve.
140
o
165 m m
50 m m
450 m m
40 m m
80 m m
50 m m
450 m m
50 m m
