Wittenborg FB 5100 - Electronic Box Components

3

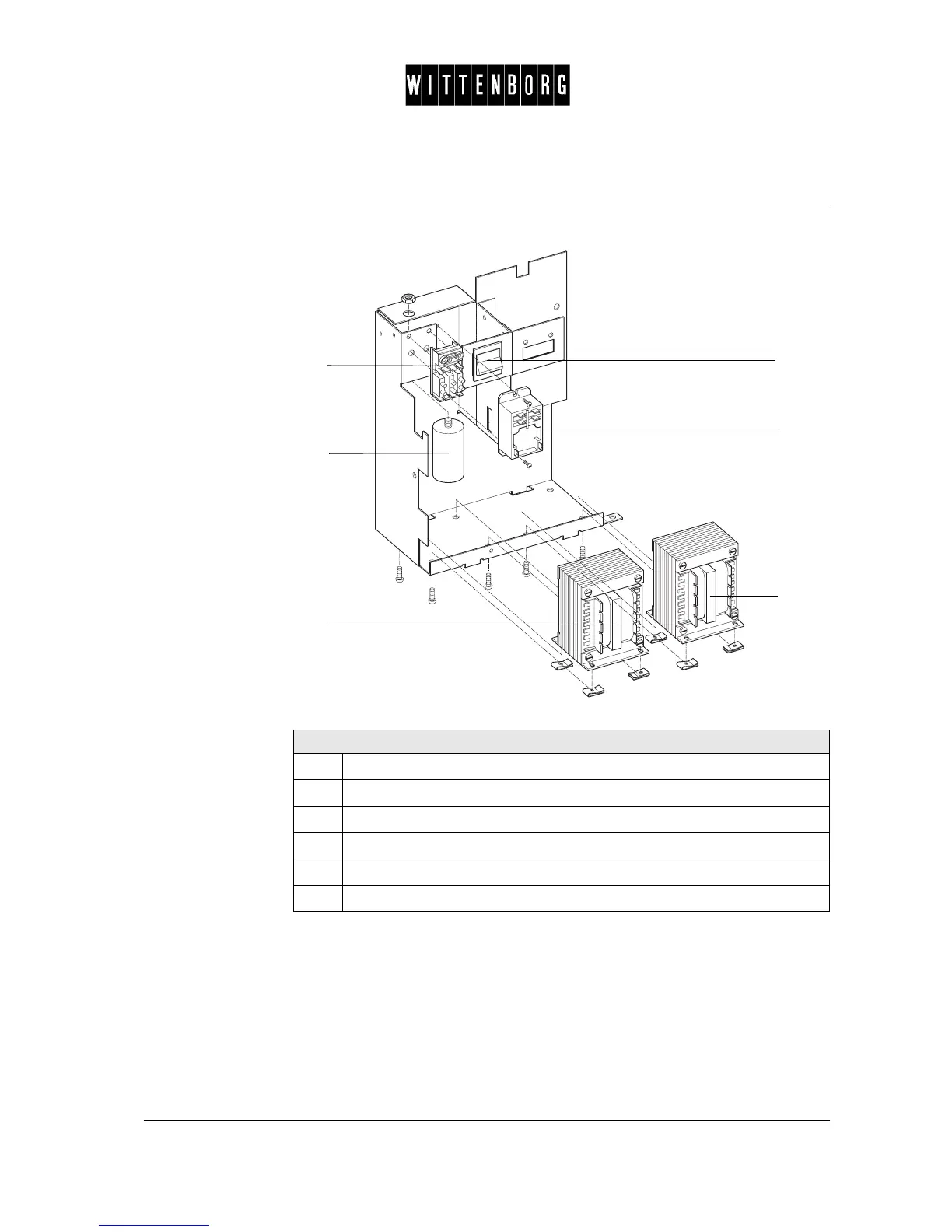

Components of the electronic box
Parts
Parts
1.
Terminal strip for connection of the power supply cable
2.
Electrical noise filter
3.
Transformer (carrying the mains voltage)
4.
Main switch
5.
Heating relay
6.
ES transformer (only on ES machines) (carrying the mains voltage)
1
0
1
4
2
ES
3
6
5
FB/IN/ES
