16
Prequisite for
calibrating valve
Have a beaker, graduated in ml, ready for measuring liquids from valves.

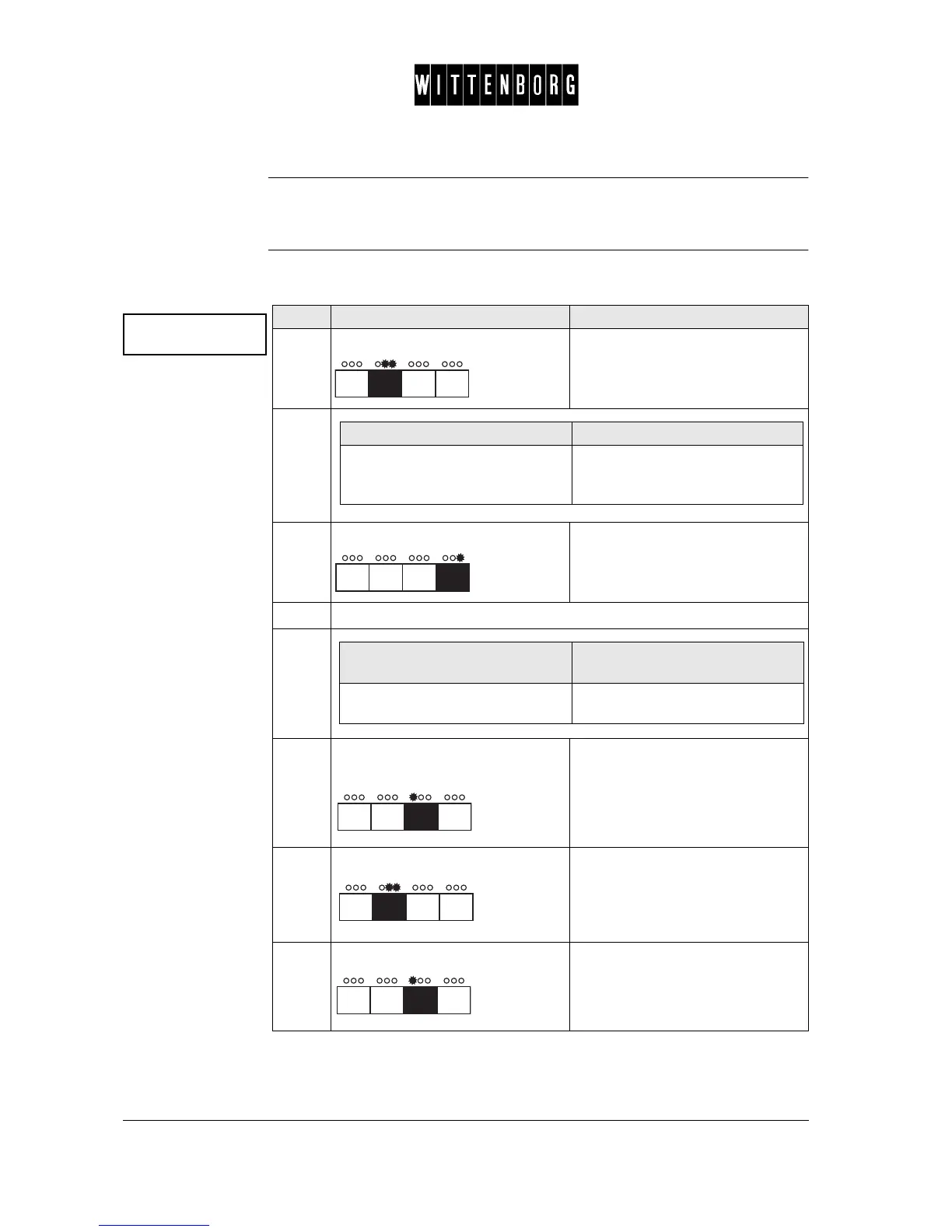

Calibrating a
valve
Having selected valve to calibrate (see above procedure) proceed as fol-
lows:
FB1 Valve
25 ml/s ->
Step Action Function
1.
Press: Shows the total volume dispensed
in ml +/-5.
(The valve is open for 5 sec.)
2.
3.
Press: Starts calibration. The display will
read "Delivering, Please Wait".
4.
Measure the water dispensed from valve in question.
5.
6.
Press the indicated button and
repeat steps 2 through 5
7.
Press: Quits the process. You can now
enter the precise value for the
quantity of water.
This will fine adjust the delivery cal-
ibration.
8.
Press: Decreases the water flow in ml per
second.
If FB valve, then If IN valve, then
remove the tube behind the FB
canister and place tube in a con-
tainer.
place a container in the cup
holder.
If quantity OK, or you want to
quit calibration, then
If quantity not OK, then
Proceed to step 7. Adjust valve mechanically and
proceed to step 6
To Next Page
