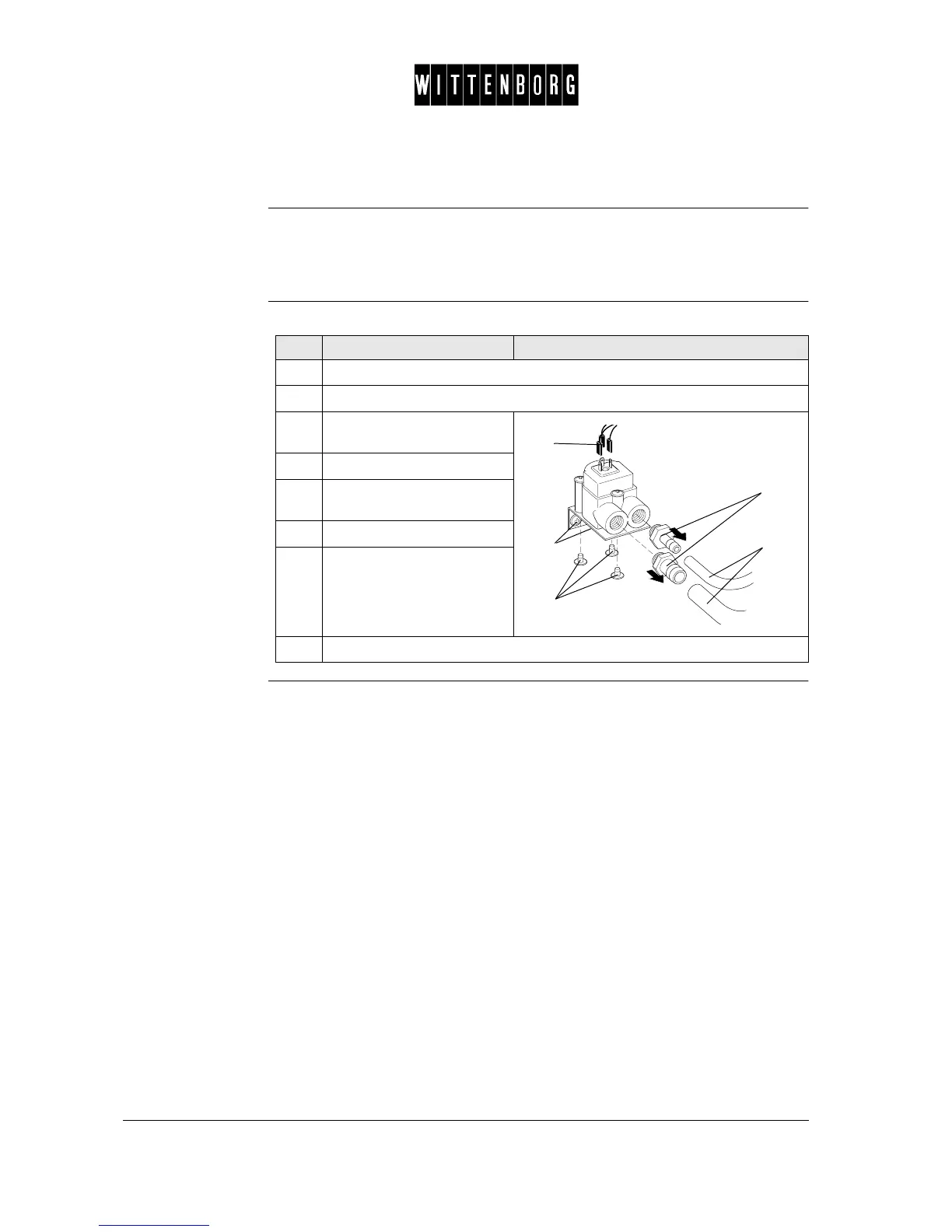

Replacing the flowmeter
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to replace the flowmeter:
Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.
Dismount water system.
3.
Disconnect cable connec-
tion (1).
4.
Pull off two hoses (2).
5.
Unscrew hose connections
(3).
6.
Remove two screws (4).
7.
Remove three screws (5) to
dismount flowmeter.
8.
Install new flowmeter and reassemble in reverse order.
4
1
2
5
3
