Replacing the O rings
Warnings • Before any repair is carried out, the main plug must be withdrawn from
the main supply!
• Only carry out this repair when the machine has cooled down!
Procedure Follow these steps to replace the O rings:
Step Action Illustration
1.
Remove waste bucket, coffee bean canister and espresso brewer.
2.

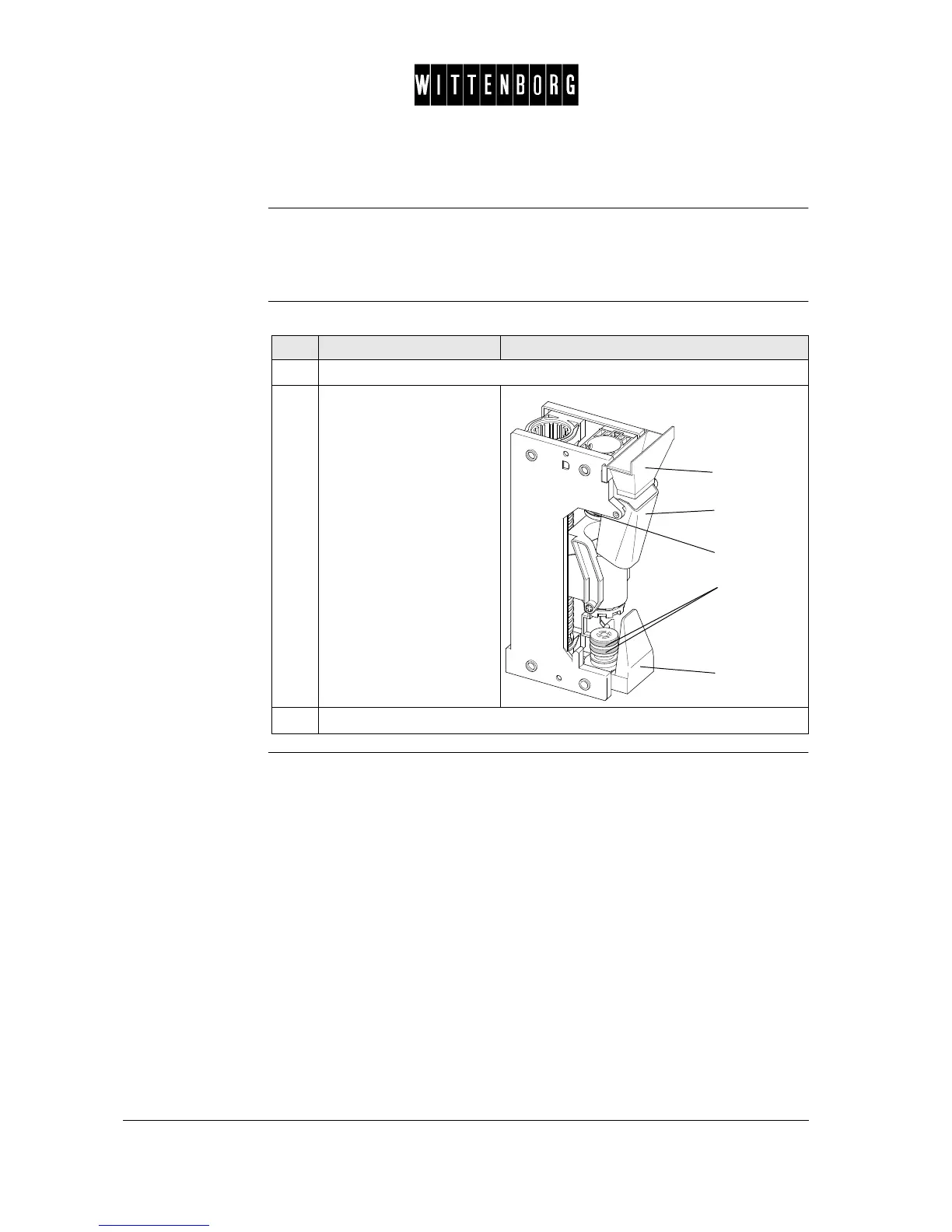

• Remove ground coffee
inlet (1) and turn
ground coffee chute (2)
outwards while remov-
ing o-ring (3)
• Remove waste guide
outlet (5) to remove o-
rings (4)
Note: It may be necessary
to use the multifunctional
tool to move the cylinder
into a position where it is
possible to reach the o-
rings.
3.
Install new O rings and reassemble in reverse order.
3
4
1
2
5
