Dismounting/Repair Brewing SystemService Manual FB50/55/5100/5500
● Pull out the tie rod together with the filter
plate support as well as the filter plate.
● Remove the screws (12) from the base of
the brewer. (Fig. 6)
● Carefully pull out the actuator, and
simultaneously unplug the cable of the
microswitches.
● Remove the locking ring and the washer of
the inner scraper arm.
● Remove the inner scraper arm through the
lower bore (13) in the side plate. (Fig. 7)

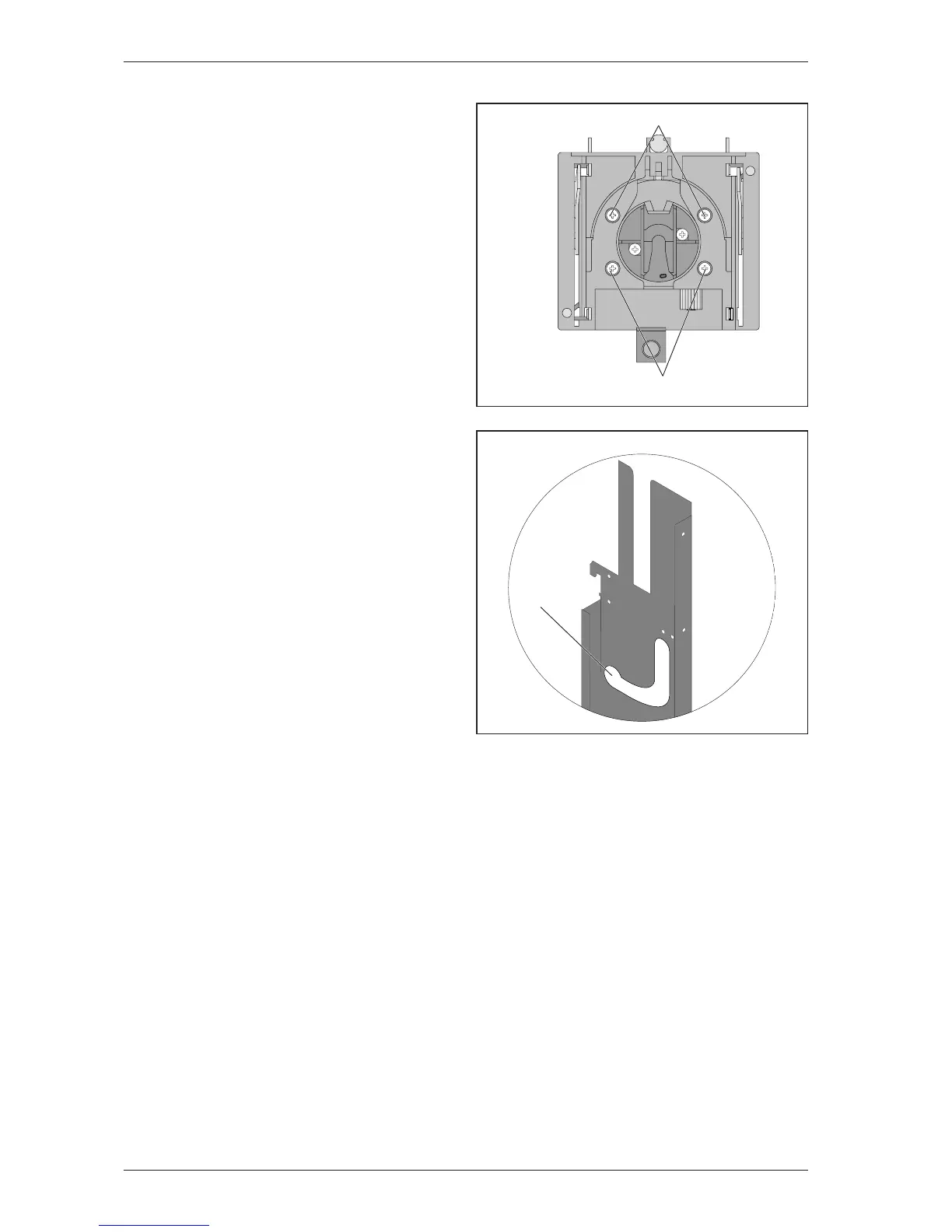

Fig. 6
12
12
Fig. 7
13
