Before Using the Machine
1.7 Loading/Replacing Paper
46

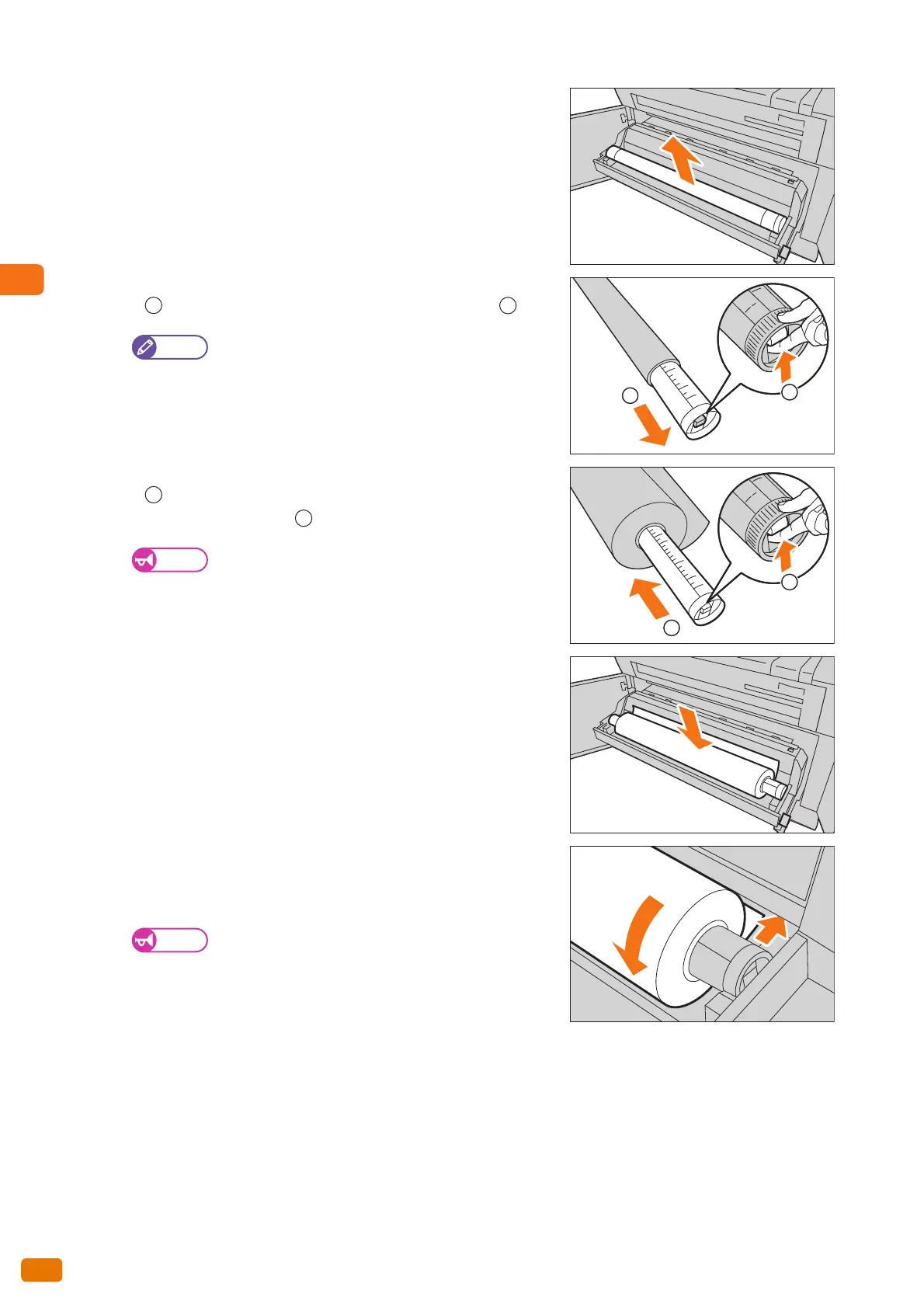

3.
Remove the shaft of the roll paper.
4.
While pulling up the lock release lever at the end of the shaft
( ), pull out the shaft from the core of the roll paper ( ).
Note

Pulling up the lock release lever unlocks the roll paper,
enabling you to pull out the shaft.
5.
While pulling up the lock release lever at the end of the shaft
( ), attach new roll paper onto the shaft according to the paper
size guide on the shaft ( ).
Important

When attaching the roll paper onto the shaft, do it on a
stable surface such as the floor so that it will not fall
down or topple over.
6.
Make sure that the roll paper's winding direction is correct, and
place the shaft onto the shaft guide.
7.
Rotate the roll paper until the leading edge of the paper touches
the roller.
The roll paper is automatically conveyed and stops.
Important

When the roll paper is not fed smoothly because its
leading edge is damaged, cut the leading edge using a
cutter knife or a similar tool before loading the paper.
2
1
1
2
2
1
1
2
