Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 3-13
Error Messages and Codes
Document Jam
Media is jammed in the ADF.
Applicable Error Messages
■ Document Jam
Initial Actions
■ Check the ADF media path for obstructions or debris.
■ Clean the rollers.
■ If the problem persists, refer to the following procedure.
2 Check the Exit Sensor for damage.
Is the Exit Sensor damaged?
Replace the Exit
Sensor
(
page 8-93).
Go to step 3.
3 Check the Exit Actuator for damage.
Is the Exit Actuator damaged?
Replace the Exit
Actuator
(
page 8-92).
Go to step 4.
4 Check the Guide Claws for damage.
Are the Guide Claws damaged?
Replace the
Fuser
(
page 8-13).
Complete.
Troubleshooting Procedure Table (continued)
Step Actions and Questions Yes No

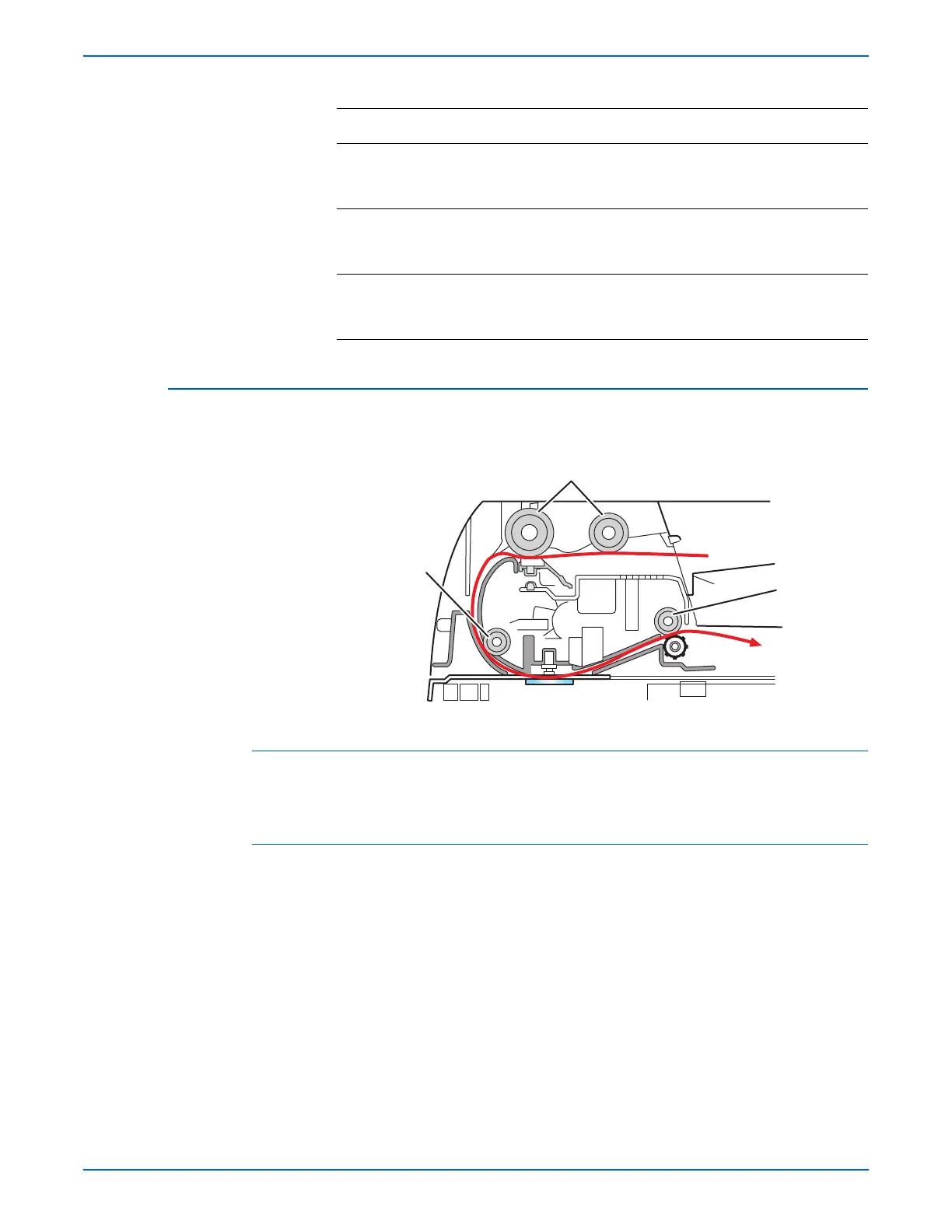

ADF Feeder Assembly
ADF Feed Roller
Pinch Roller
s3210mfp-113
