Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-47
Service Parts Disassembly
ADF Feed Pad Assembly
PL6.1.11

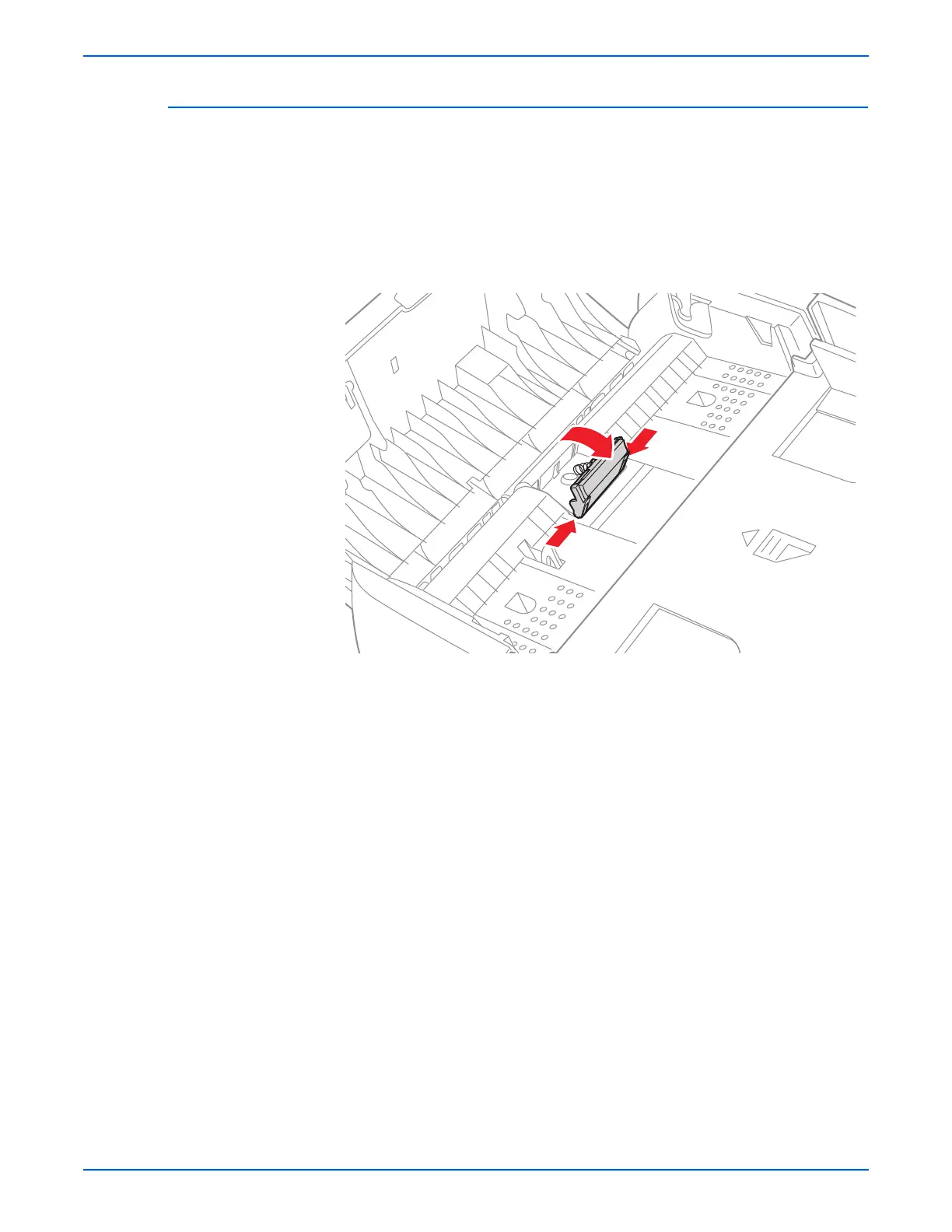

1. Remove the ADF Feeder Assembly (page 8-39).
2. Pry the ADF Feed Pad Assembly upward toward the right side.
3. Press the left and right sides of the ADF Feed Pad Assembly inward to
release it from the upper ADF.
4. Remove the ADF Feed Pad Assembly.
s3210mfp-169

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
