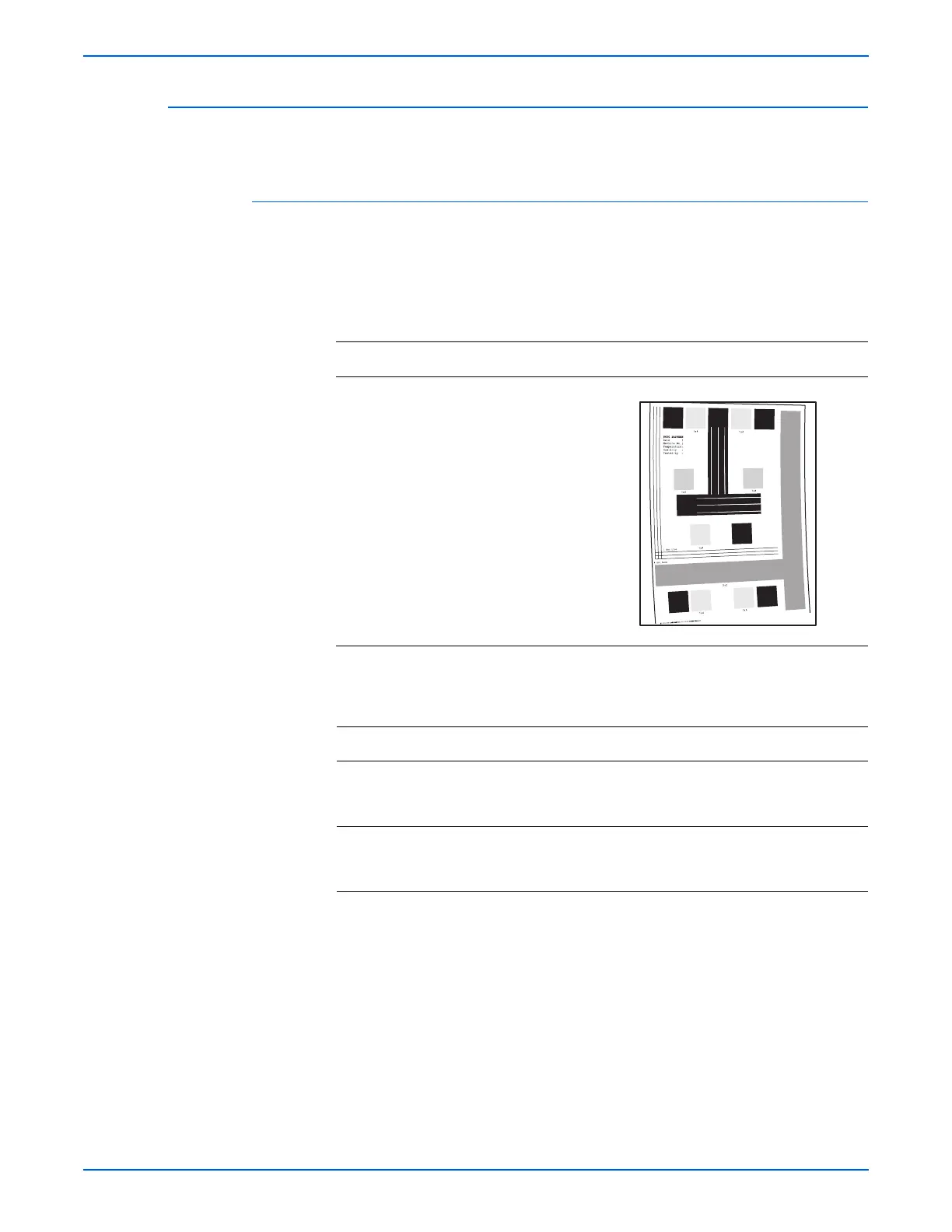

Page #177 background image
WorkCentre 3210/3220 Multifunction Printer Service Manual 5-19
Print-Quality Troubleshooting
Vertical Lines are Curved
When printing, vertical lines are not straight.
Initial Actions
â–  Cycle printer power.
â–  If the problem persists, refer to the following procedure.
Troubleshooting Reference Table
Applicable Parts Example Print
â–  Main Controller Board, PL1.0.2
â–  Laser Unit, PL1.0.12
â–  Print Cartridge, PL1.0.21
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Power Supply for the
correct voltage.
Does the voltage show +24V?
Go to step 2. Replace the
Power Supply
().
2 Replace the Laser Unit ().
Does the error still occur?
Replace the
Main Controller
Board ().
Complete.
s3210mfp-206
