Xerox WorkCentre 3220 Service Manual

8-16 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Thermostat
PL8.0.7
Warning
Allow the Fuser to cool before performing this procedure.
1. Remove the Fuser (page 8-13).
2. Remove 2 screws (10 mm, black) that secure the Thermostat.
3. Lift the Thermostat away from the fuser cover.
4. Disconnect the wiring harness connectors CN49 & CN50 from the
Thermostat.
5. Remove the Thermostat.

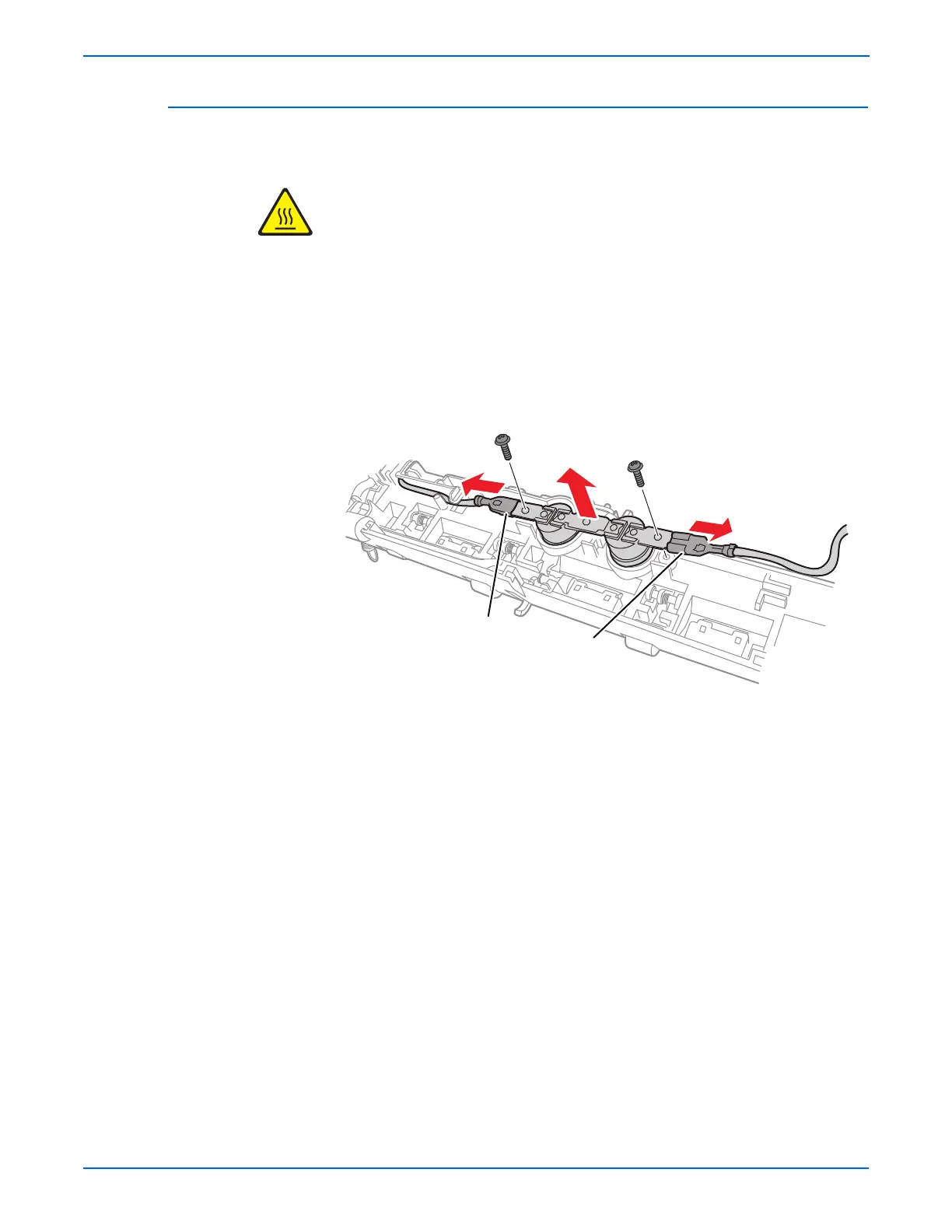

s3210mfp-027
CN49
CN50
