Xerox WorkCentre 3220 Service Manual

3-12 WorkCentre 3210/3220 Multifunction Printer Service Manual
Error Messages and Codes

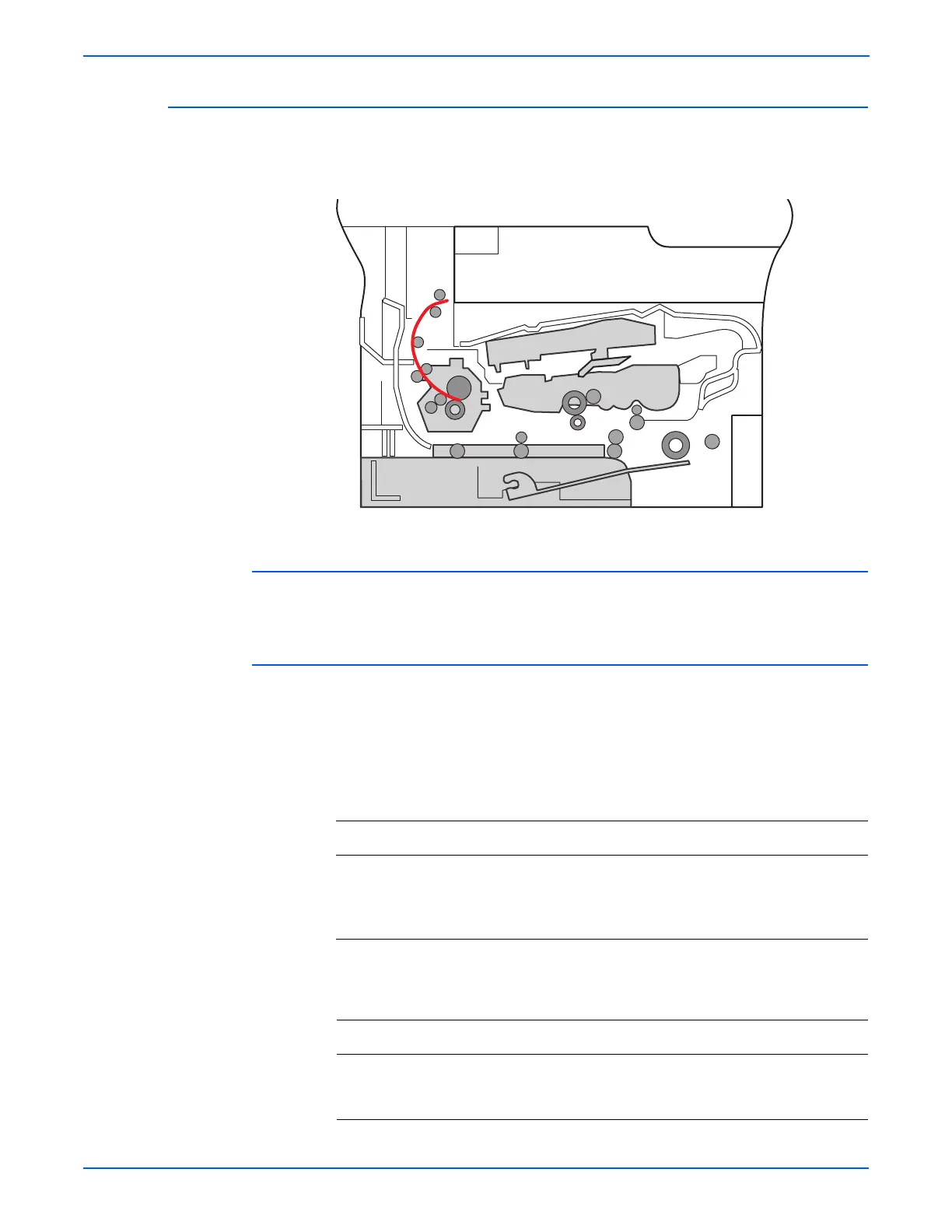

Paper Jam 2
There is a jam in front of or inside of the Fuser. The media did not reach the
Exit Sensor on time.
Applicable Error Message
■ Paper Jam 2
Initial Actions
■ Check the paper path for obstructions or debris.
■ Cycle printer power.
■ If the problem persists, refer to the following procedure.
Troubleshooting Reference Table
Applicable Parts Wiring and Plug/Jack Map References
■ Fuser, PL8.0.0
■ Guide Claw, PL8.0.16
■ Exit Actuator, PL8.0.19
■ Exit Sensor, PL8.0.37
■ Map 3 - Sensor Locator
■ Power and Fuser
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check for media inside the Fuser.
Is there media in the Fuser?
Remove the
media and clean
the Fuser rollers.
Go to step 2.
s3210mfp-240

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
