WorkCentre 3210/3220 Multifunction Printer Service Manual 8-81
Service Parts Disassembly

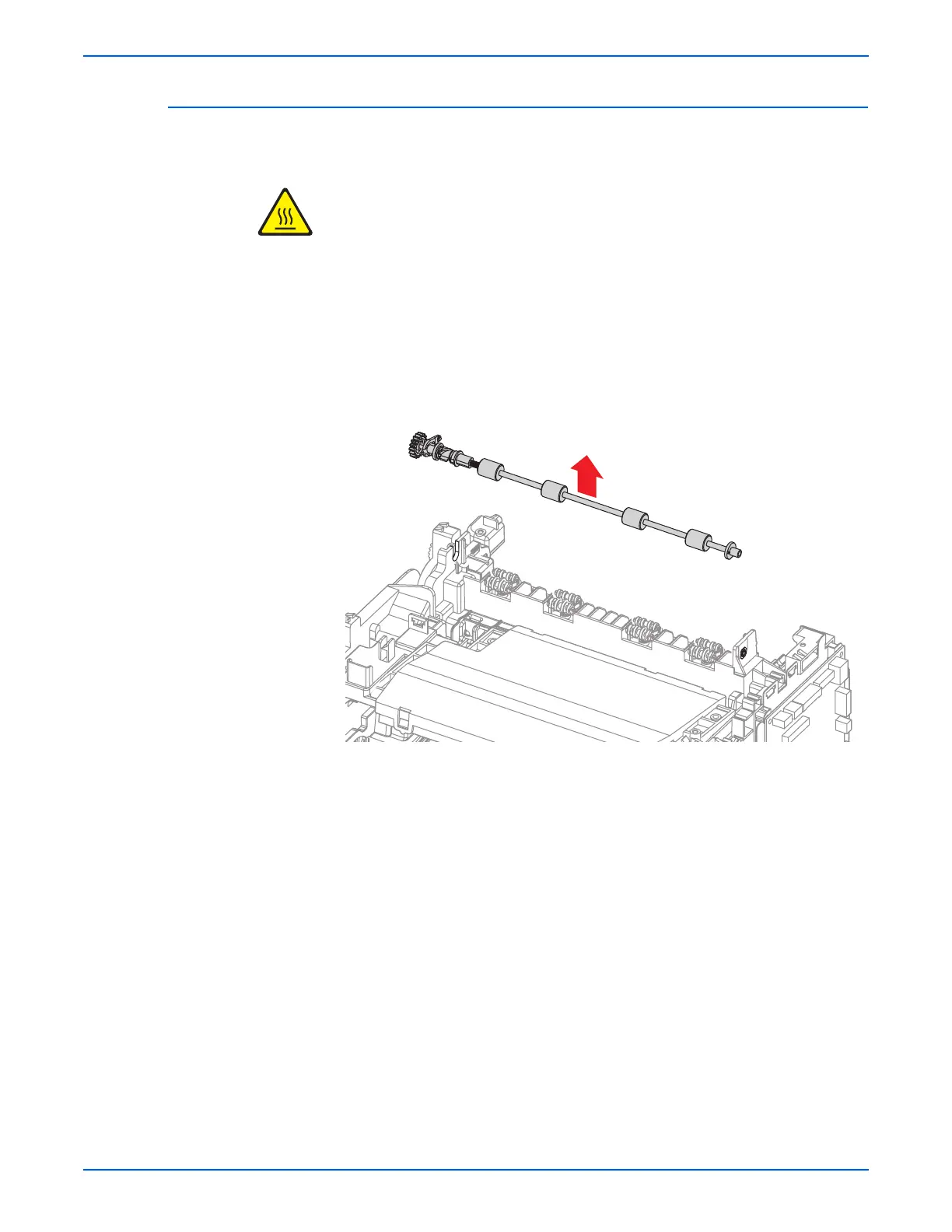

Exit Roller
PL4.0.59
Warning
Allow the Fuser to cool before performing this procedure.
1. Remove the Fuser (page 8-13).
2. Remove the Middle Cover (page 8-65).
3. Release the clip on the Exit Roller from the upper exit frame.
4. Remove the Exit Roller.
s3210mfp-250

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
