Xerox WorkCentre 3220 Service Manual

8-122 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Pick Up Unit
PL10.0.10
1. Remove the Optional Tray Assembly (page 8-117).
2. Remove Tray 2.
Note
Do not flex the latch. This will prevent the pick up idle from resting
securely after installation.

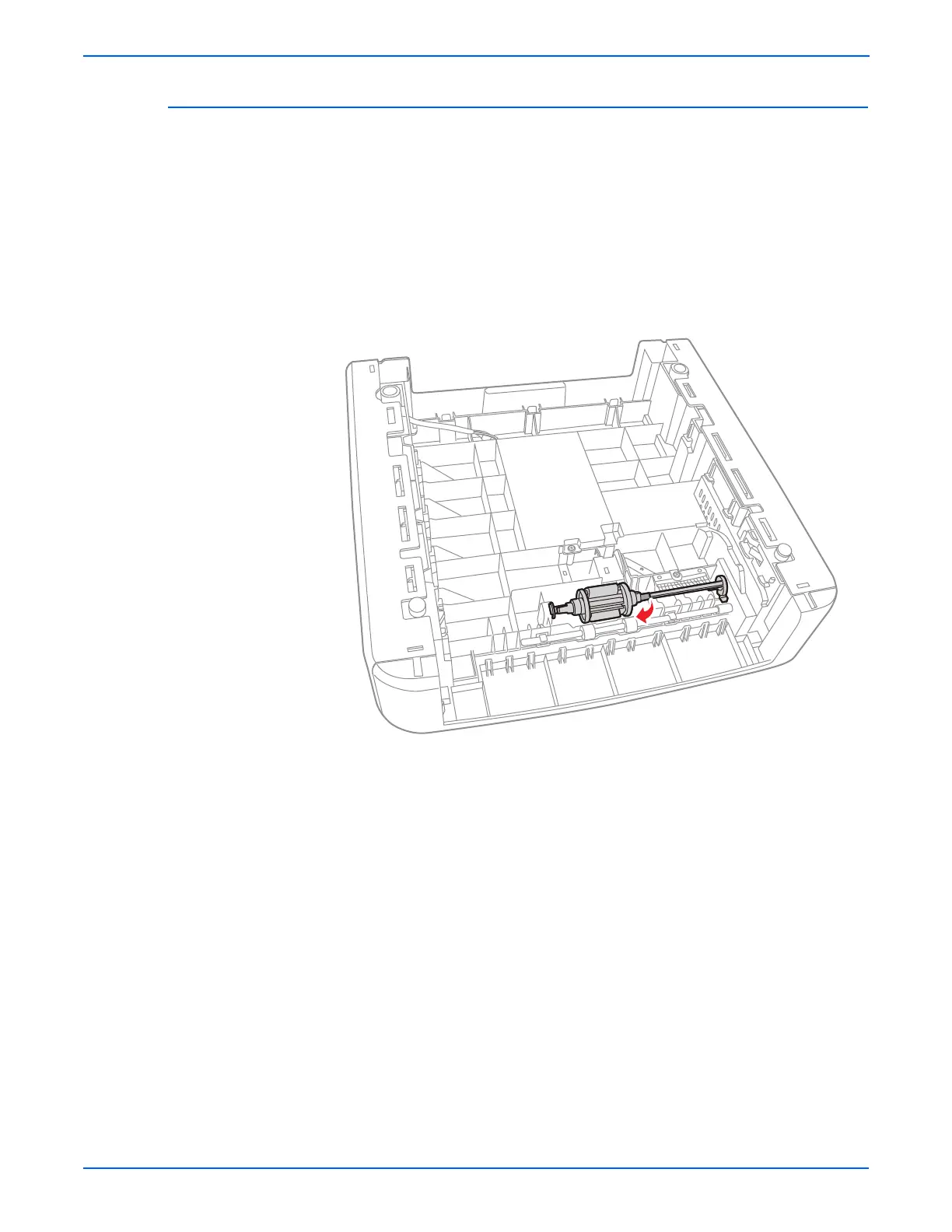

3. Release the pick up stopper latch from the pick up shaft.
s3210mfp-194

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
