Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-119
Service Parts Disassembly
Left Cover
PL10.0.4

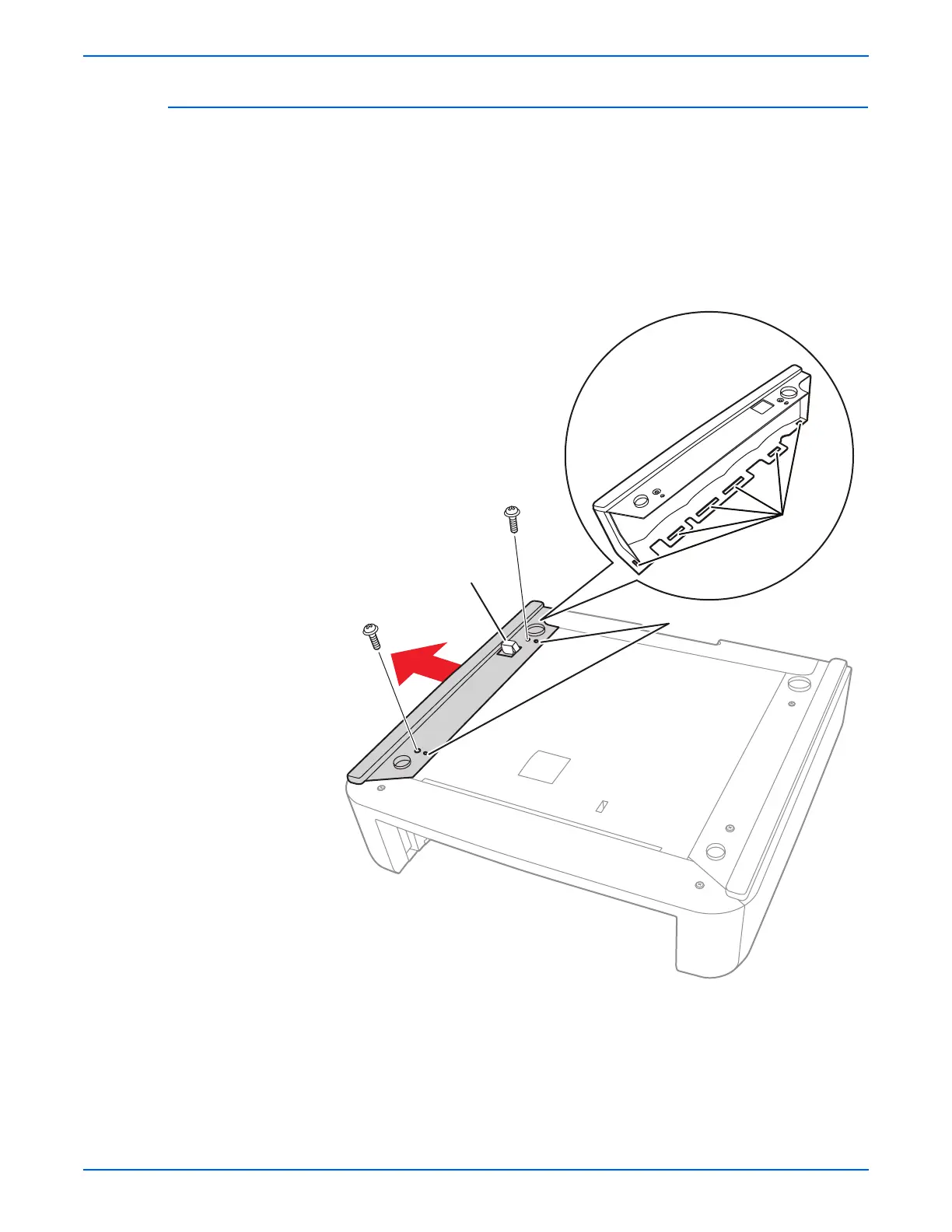

1. Remove the Optional Tray Assembly (page 8-117).
2. Remove 2 screws (12 mm, silver) that secure the Left Cover.
3. From the top side of the sheet feeder, pry the Left Cover to release the
Cover from the 2 notches.
4. While pressing on the ground, slide the Left Cover out and remove the
Left Cover.
s3210mfp-192
Bosses
Ground
Latches

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
