Xerox WorkCentre 3220 Service Manual

2-12 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation

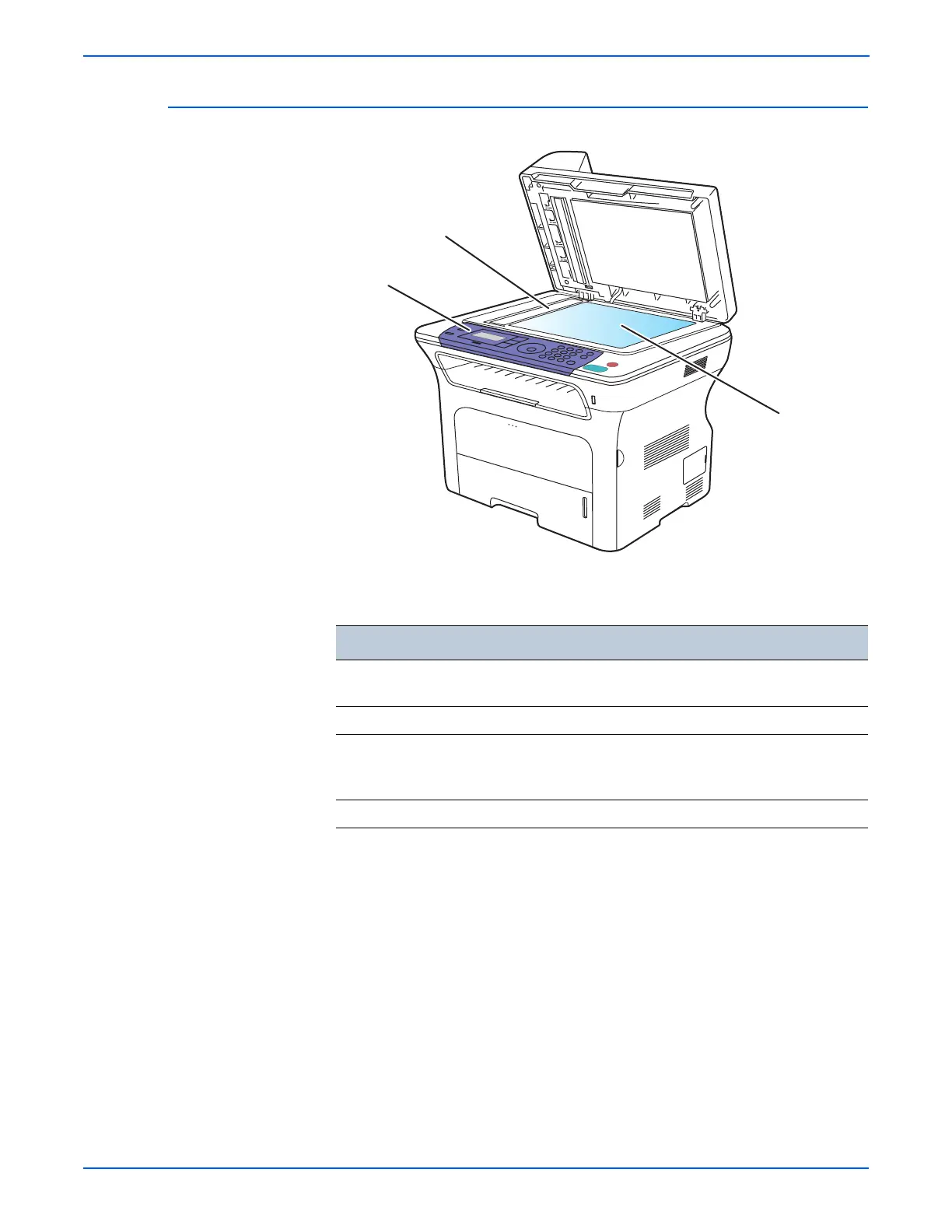

Scanner Assembly
Scanner Assembly Components
Components Description
Platen Glass The document glass is used for copying or scanning
original documents and images.
Contact Image Sensor Scans the original converting the image in data.
CVT Window This portion of the document glass is a part of the ADF
paper path. The function of this window is to allow the
scan head to image an original being fed through the ADF.
Control Panel The Control Panel is the user interface with the printer.
s3210mfp-132
CVT Window
Control Panel
Document Glass

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
