Xerox WorkCentre 3220 - Drive; Drive Unit Assembly

8-98 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Drive
Drive Unit Assembly
PL1.0.8

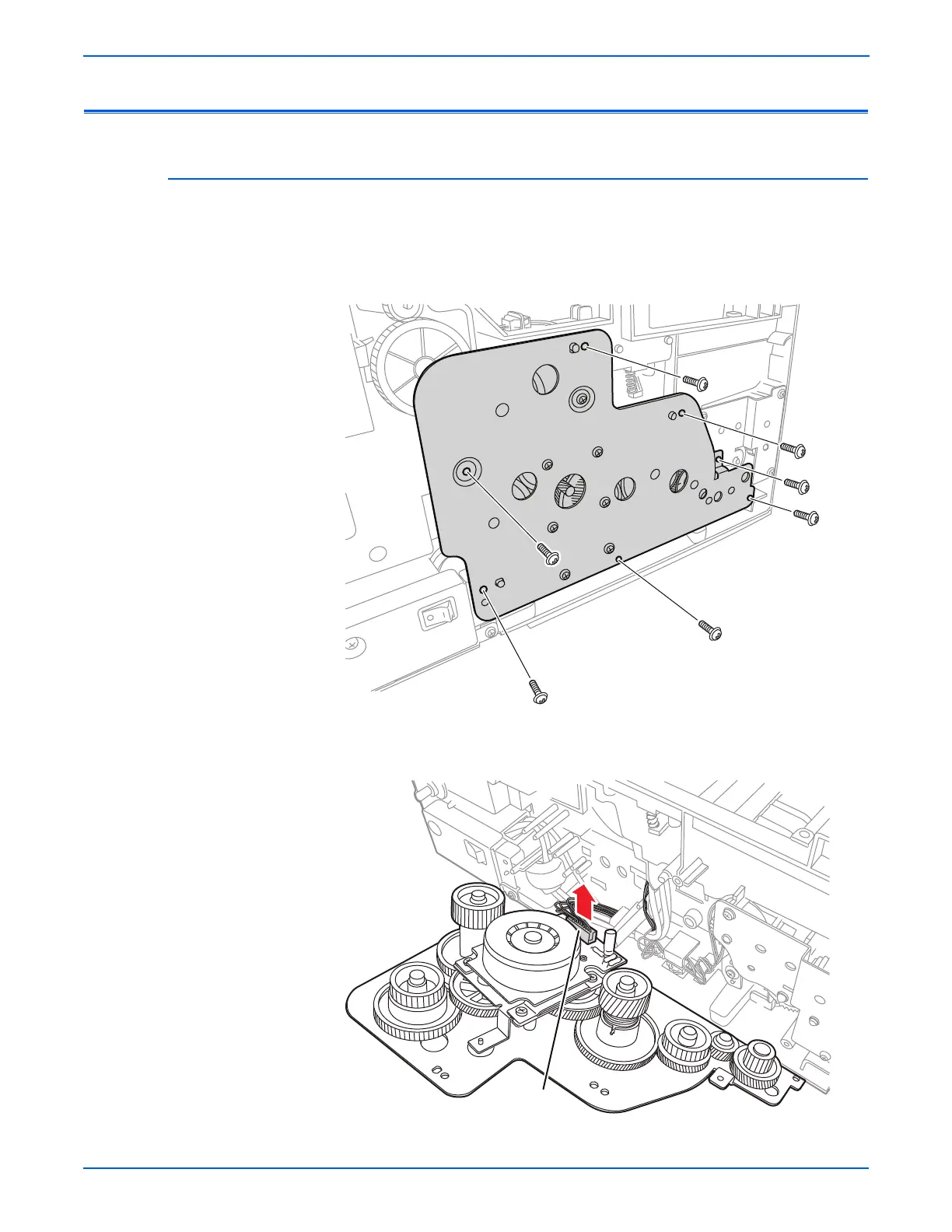

1. Remove the Left Cover (page 8-59).
2. Remove 7 screws (12 mm, silver) that secure the Drive Unit Assembly.
3. Disconnect the Drive Unit Assembly wiring harness connector and
remove the Drive Unit Assembly.
1
5
3
7
6
2
4
s3210mfp-057
CN19
s3210mfp-058
