Xerox WorkCentre 3220 - ADF Feeder Assembly

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-39
Service Parts Disassembly
ADF Feeder Assembly
PL6.1.6

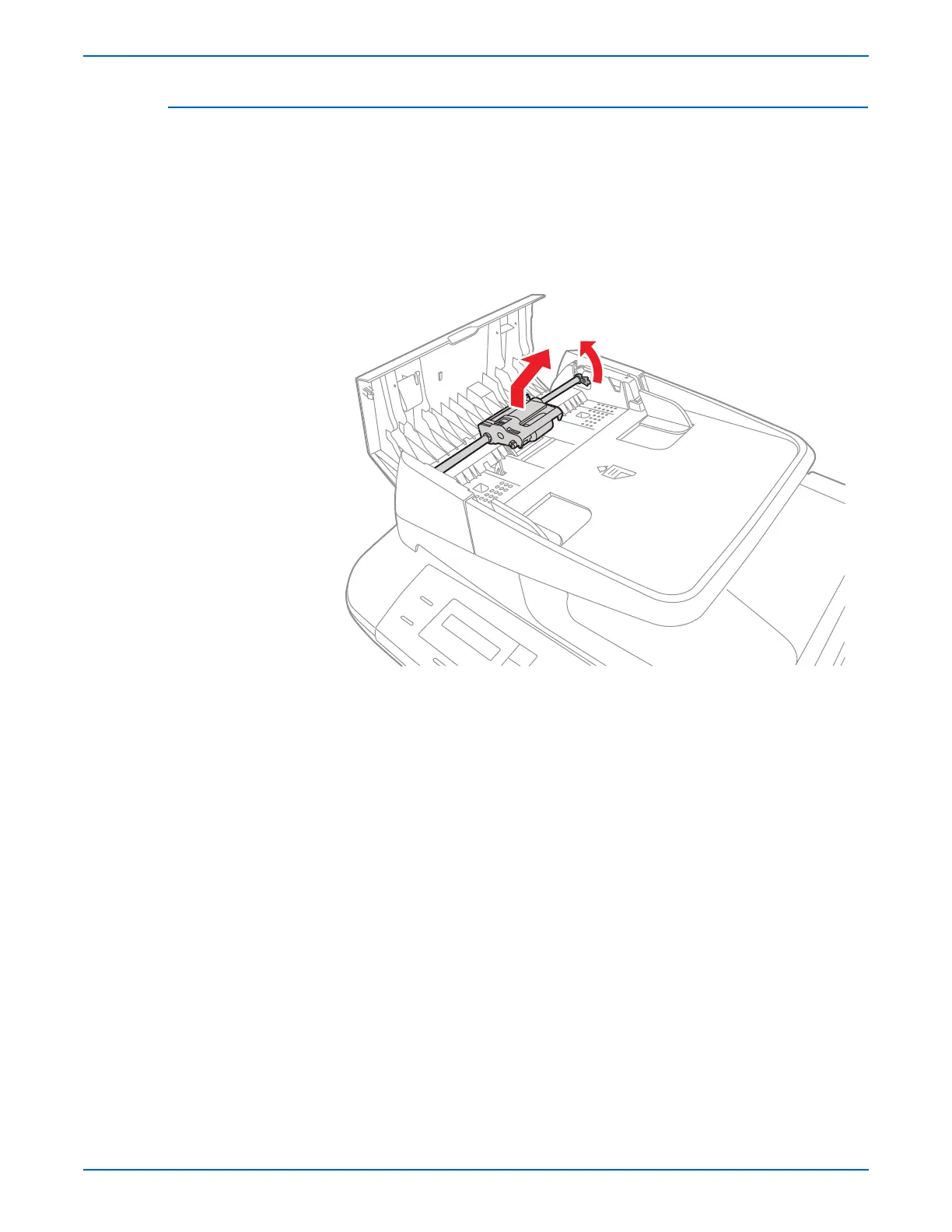

1. Open the ADF cover.
2. Turn the bushing upward to release the ADF Feeder Assembly from the
Upper ADF.
3. Lift and slide the ADF Feeder Assembly toward the right side.
4. Remove the ADF Feeder Assembly.
s3210mfp-146
2
1
