Xerox WorkCentre 3220 Service Manual

5-20 WorkCentre 3210/3220 Multifunction Printer Service Manual
Print-Quality Troubleshooting

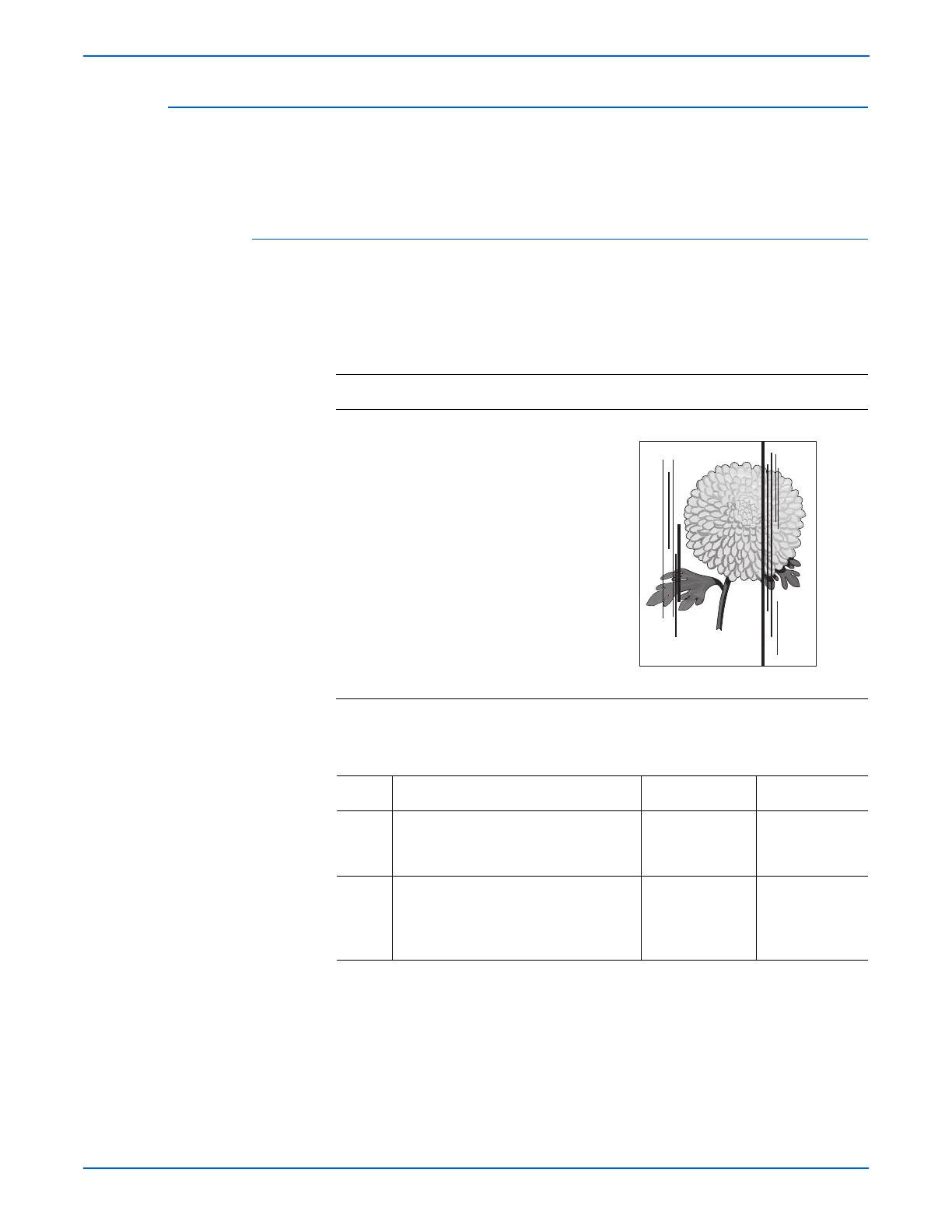

Vertical Black Line or Band
There are faded or black lines along the page in the direction of the paper
travel from the leading edge to the trailing edge. This often occurs when the
developer roller or cleaning blade in the Print Cartridge is damaged.
Initial Actions
■ Check the condition of the Print Cartridge.
■ Check the surface of the Transfer Roller.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.0.11
■ Print Cartridge, PL1.0.21
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Print Cartridge for damage.
Is the Print Cartridge damaged?
Replace the
Print Cartridge
(
8-7).
Go to step 2.
2 Check the Transfer Roller surface for
damage.
Is the Transfer Roller surface
damaged?
Replace the
Transfer Roller
(8-10).
Complete.
Vertical Stripes

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
