WorkCentre 3210/3220 Multifunction Printer Service Manual 8-115
Service Parts Disassembly
UI PBA
PL6.4.13

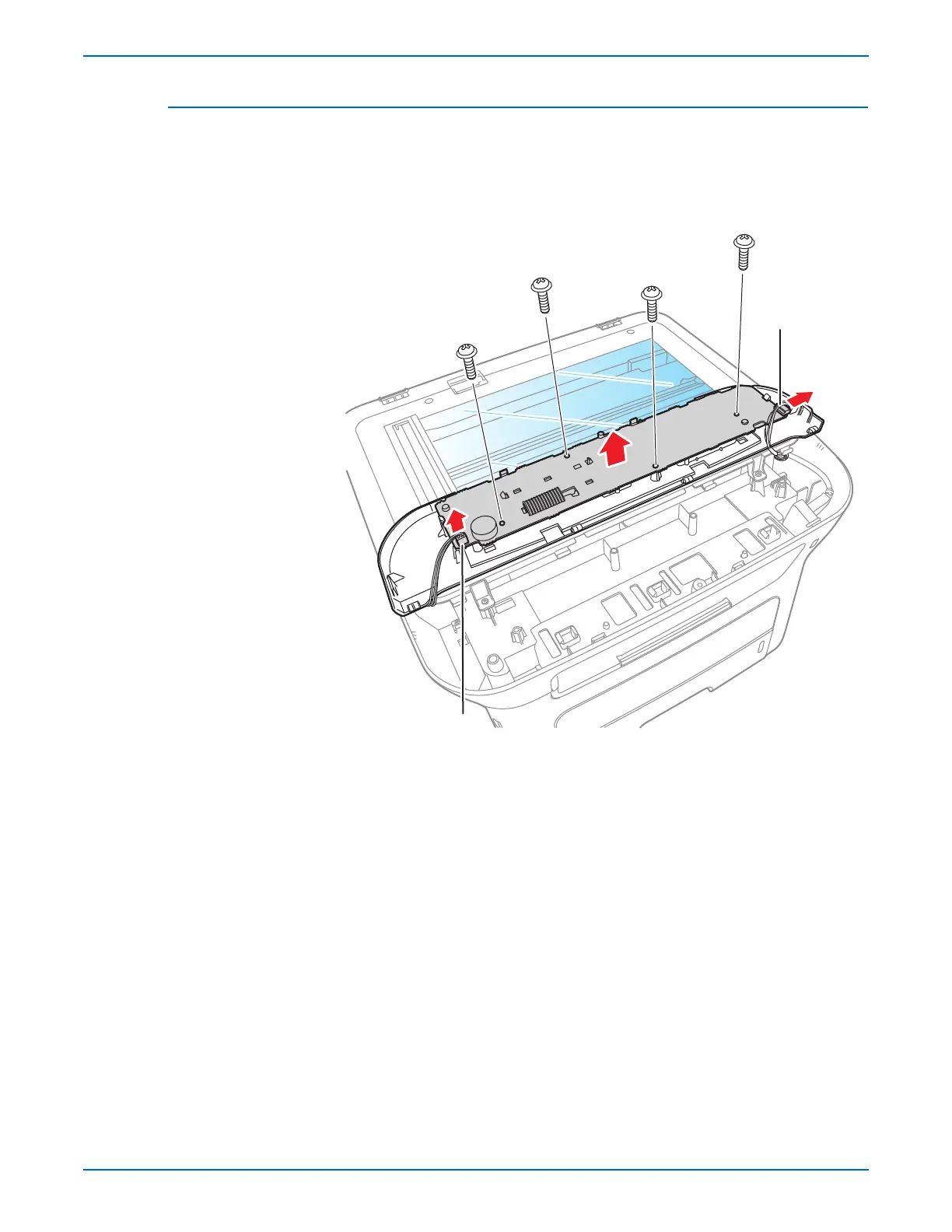

1. Remove the Control Panel (page 8-67).
2. Remove 4 screws (12 mm, silver) that secure the Control Panel.
CN1
CN4, CN5
s3210mfp-210
