Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 10-13
Wiring
Wiring Diagrams

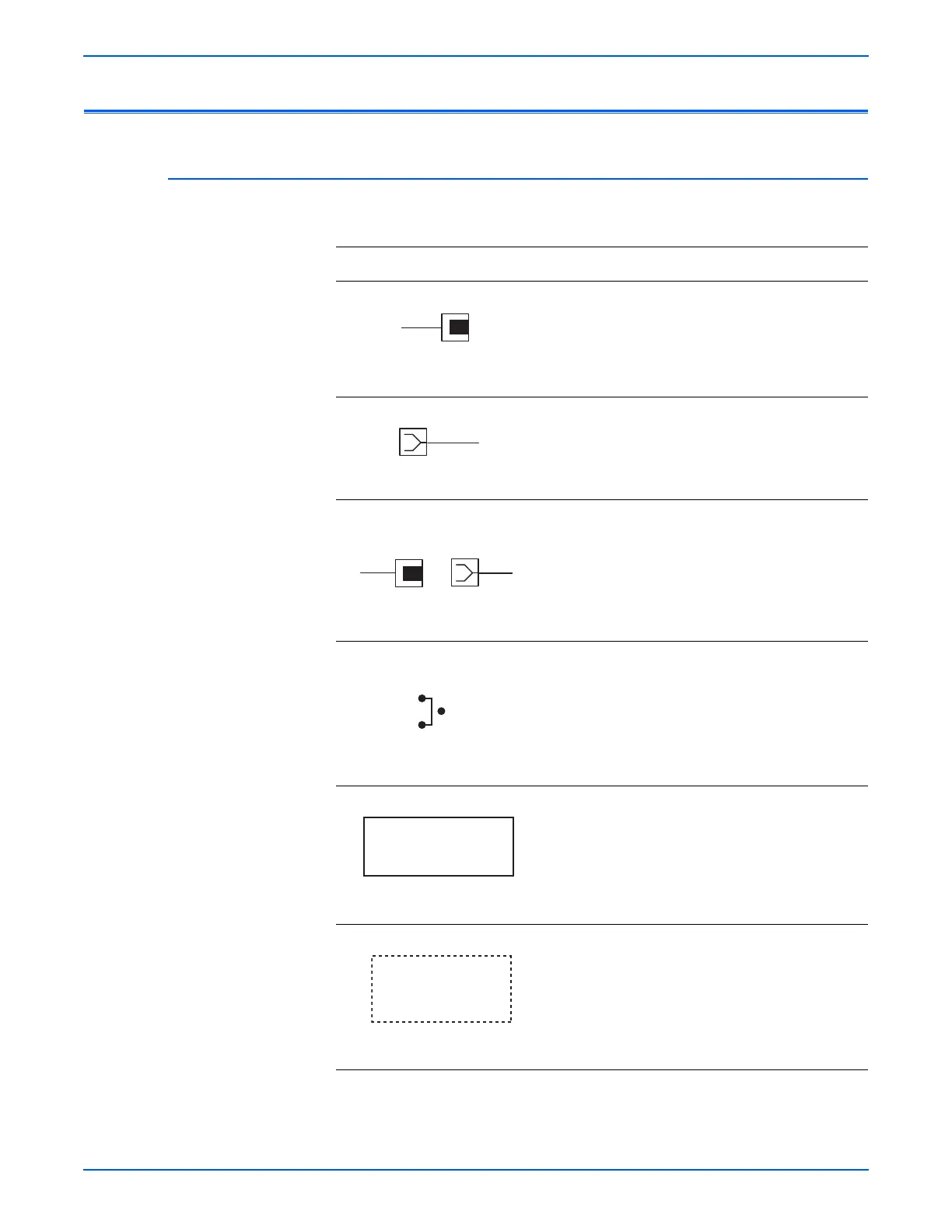

Notations Used in the Wiring Diagrams
The following table lists the symbols used in the wiring diagrams.
Symbol Description
Denotes a Plug.
Denotes a Jack.
Denotes Pin yy and Jack yy of the connector Pxx
and Jxx.
Denotes a Jumper Point (JPxxx/xxx). Each end of
the Jumper connection has a numeric
designation.
Denotes the parts.
PL X.Y.Z implies the item “Z” of plate (PL) “X.Y”
in Parts List.
Denotes functional parts attached with functional
parts name.
Plug
Jack
P/Jxx
YY
Plug and Jack
JPxxx
Jumper
Fuser
PL X.Y.Z
Subassembly 1
Heater
Subassembly 2

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
