8-112 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

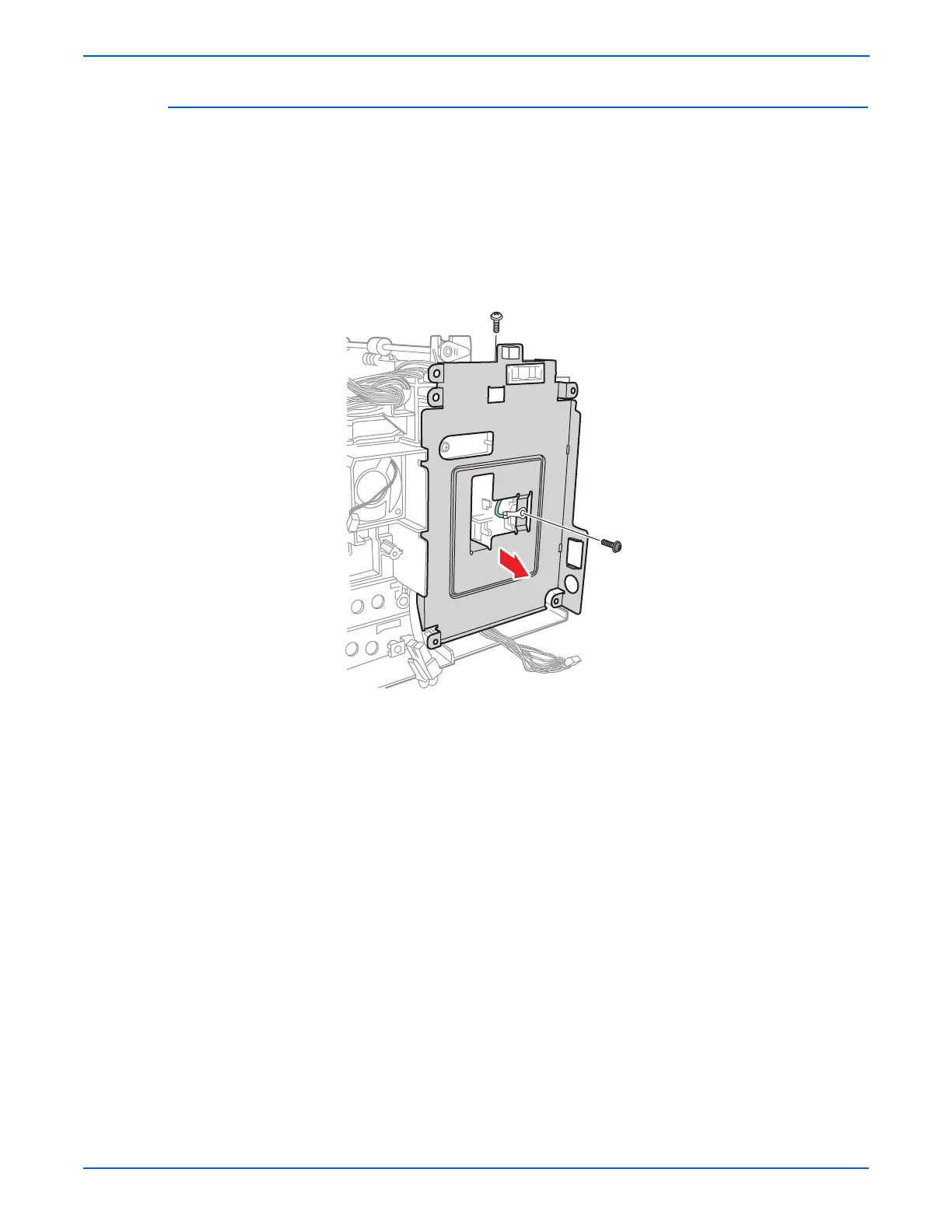

Controller Shield
PL4.0.63
1. Remove the Middle Cover (page 8-65).
2. Remove the Main Controller PBA (page 8-100).
3. Disconnect the 2 wiring harness connectors on the back of the Controller
Shield.
4. Remove 1 screw (12 mm, silver) and 1 screw (12 mm, black) that secure
the Controller Shield.
5. Release the Controller Shield from the frame.
Replacement Note
Be sure to secure the ground wire between the Controller Shield and
the screw.
s3210mfp-060

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
