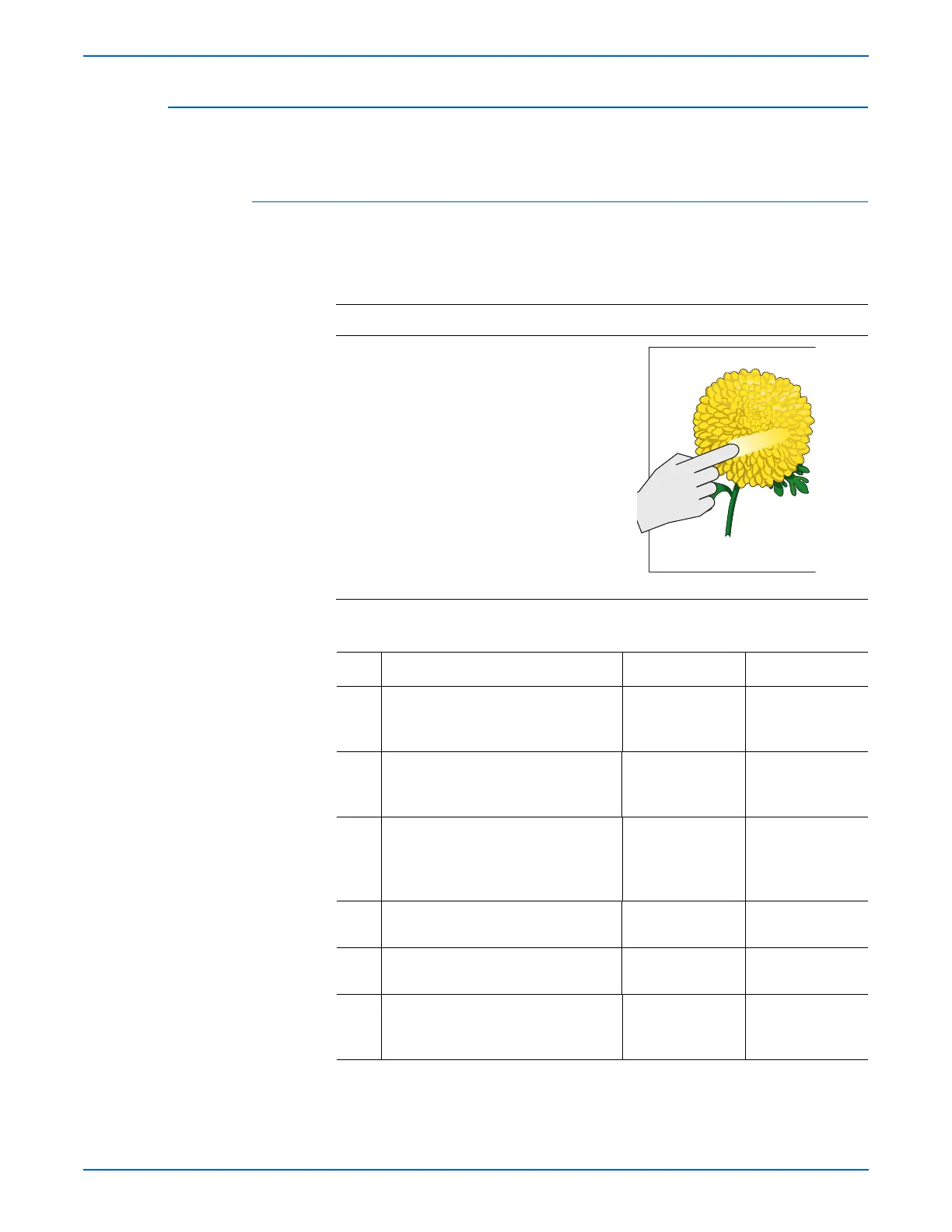

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-29
Print-Quality Troubleshooting
Incomplete Fusing
The toner is not completely fused to the paper and easily rubs or flakes off.
Initial Actions:
â–  Verify the correct media type is set.
Troubleshooting Reference Table
Applicable Parts Example Prints
â–  Fuser, PL8.0.0
â–  Print Cartridge, PL1.0.21
â–  Power Supply, PL1.0.4
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Run the Clean Drum procedure from
the Maintenance menu.
Does the problem persist?
Go to Step 2 Complete.
2 Check the media.
Is the media dry, recommended type,
and loaded correctly?
Go to step 3. Replace the
media.
3 Check the media settings.
Does the loaded media type/size
match the setting displayed on the
Control Panel?
Go to Step 4. Adjust the setting
to a heavier type.
4 Check the Print Cartridge.
Is the Print Cartridge damaged?
Go to step 5. Replace the Print
Cartridge (
8-11).
5 Reseat the Fuser.
Does the problem persist?
Go to step 6. Complete.
6 Replace the Fuser (8-7).
Does the problem persist?
Replace the
Power Supply
(
8-100).
Complete.
Unfused Ima
