WorkCentre 3210/3220 Multifunction Printer Service Manual 2-13
Theory of Operation
Image Output Terminal

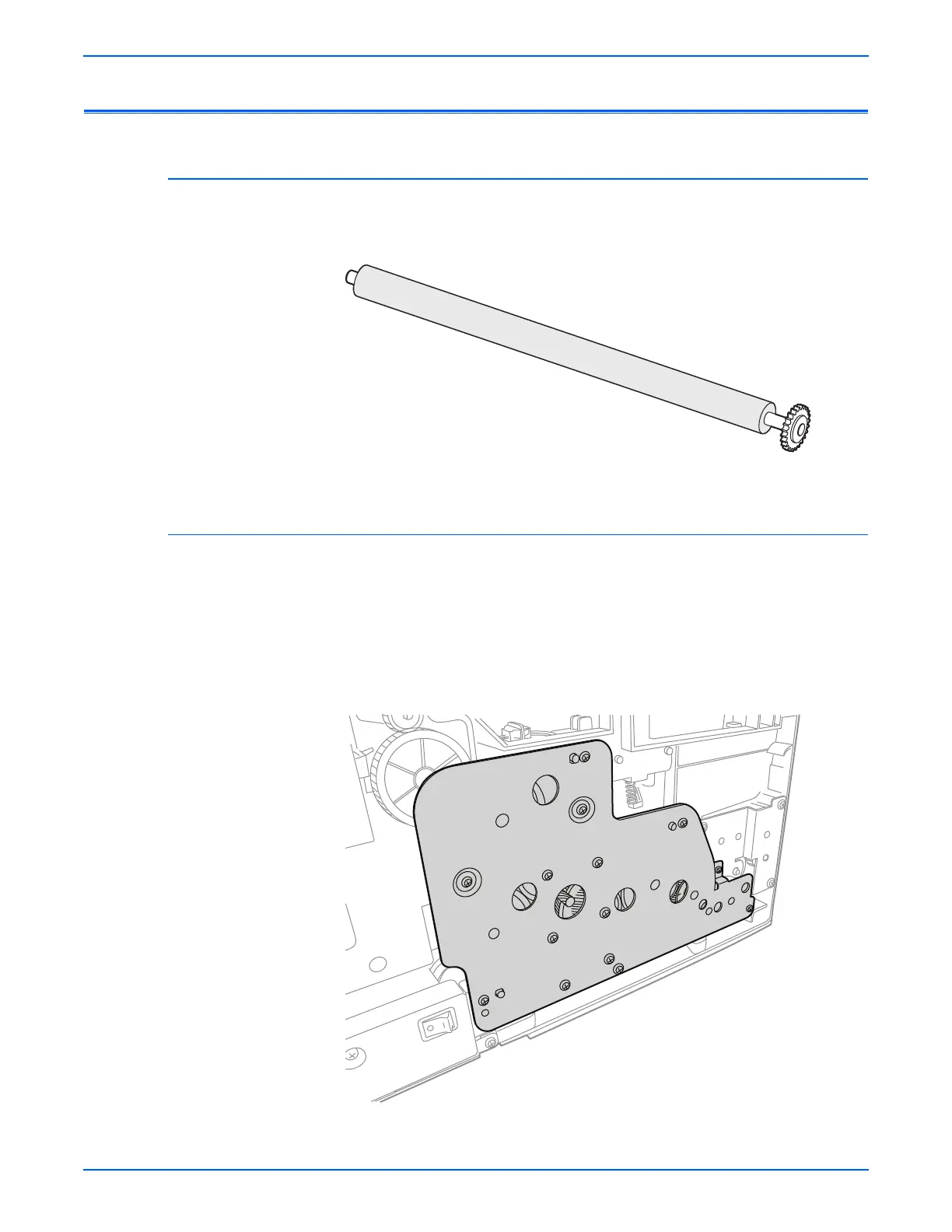

Transfer Roller
The Transfer Roller transfers toner on an Organic Photo Conductor (OPC) to
the paper.
Drive Unit Assembly
The Drive Unit Assembly receives power from the Main Controller Board, The
Main Motor provides drive energy to the paper feed, Print Cartridge, Fuser,
Pick Up Roller, Feed Rollers, and Duplex Unit. The Drive Unit Assembly
consists of the Main Motor and gear set mounted to a support plate.
■ Main Motor: DC 24V
■ Rated RPM: 2170 rpm
s3210mfp-133
1
5
3
7
6
2
4
s3210mfp-134

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
