WorkCentre 3210/3220 Multifunction Printer Service Manual 8-73
Service Parts Disassembly
Feed Roller (Registration Roller)
PL4.0.20
1. Remove the Middle Cover (page 8-65).
2. Remove the Registration Clutch (page 8-71).
3. Remove the exit idle gear and the feed gear.
4. Remove the Pick Up Solenoid (page 8-79).
5. Remove the HVPS (page 8-101).
6. Remove the Power Supply (page 8-104).
7. Remove the Power Supply Shield (page 8-113).

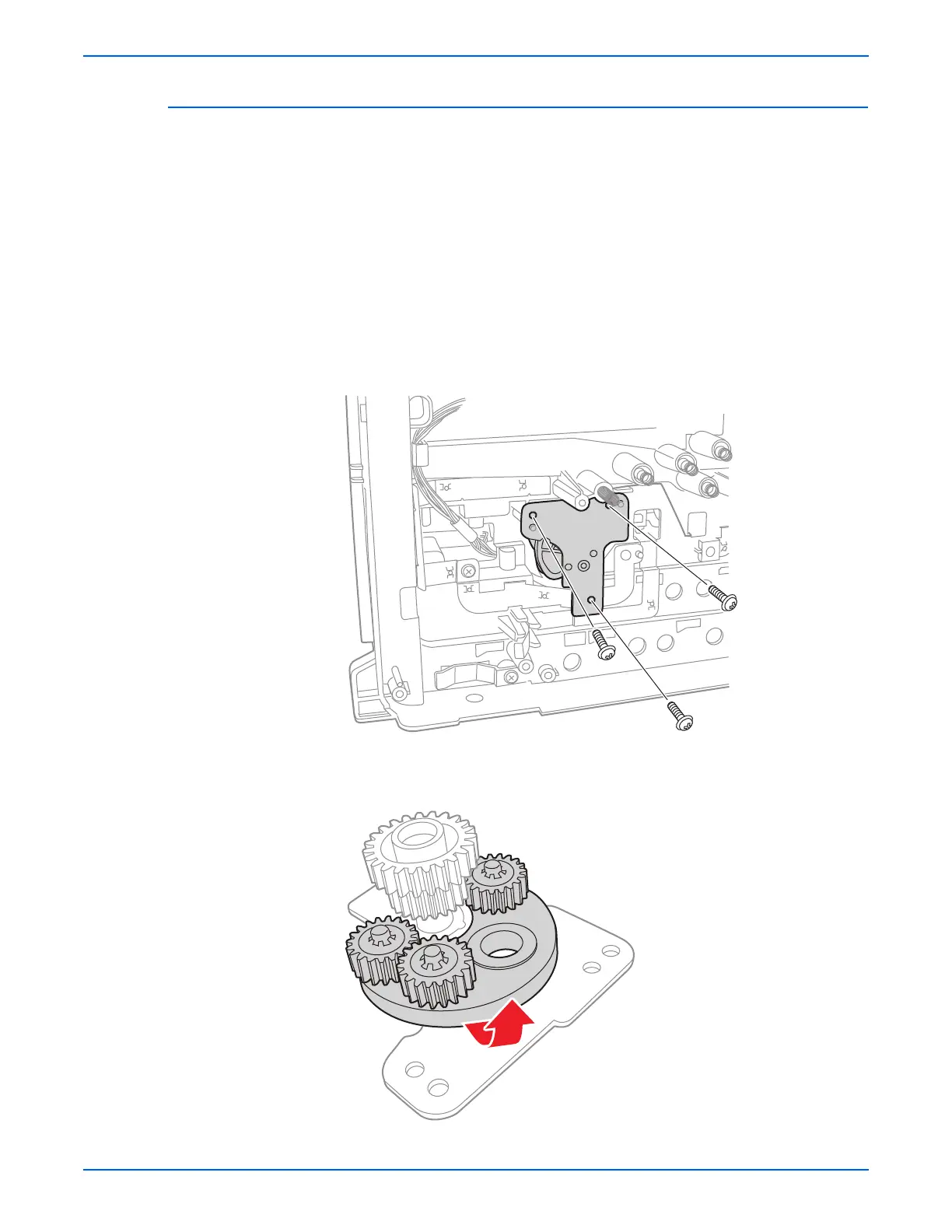

8. Remove 3 screws that secure the swing bracket.
9. Remove the swing bracket.
10. Remove the swing collar, the duplex gear, and the swing unit.
1
3
2
s3210mfp-040
s3210mfp-041

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
