WorkCentre 3210/3220 Multifunction Printer Service Manual 2-9
Theory of Operation
Image Input Terminal
The Image Input Terminal (IIT) generates the image data for copies and scans
and is made up of two major subsystems:
■ Automatic Document Feeder (ADF)
■ Scanner Assembly with the Control Panel
Automatic Document Feeder
The ADF automatically feeds original documents from the ADF input tray.

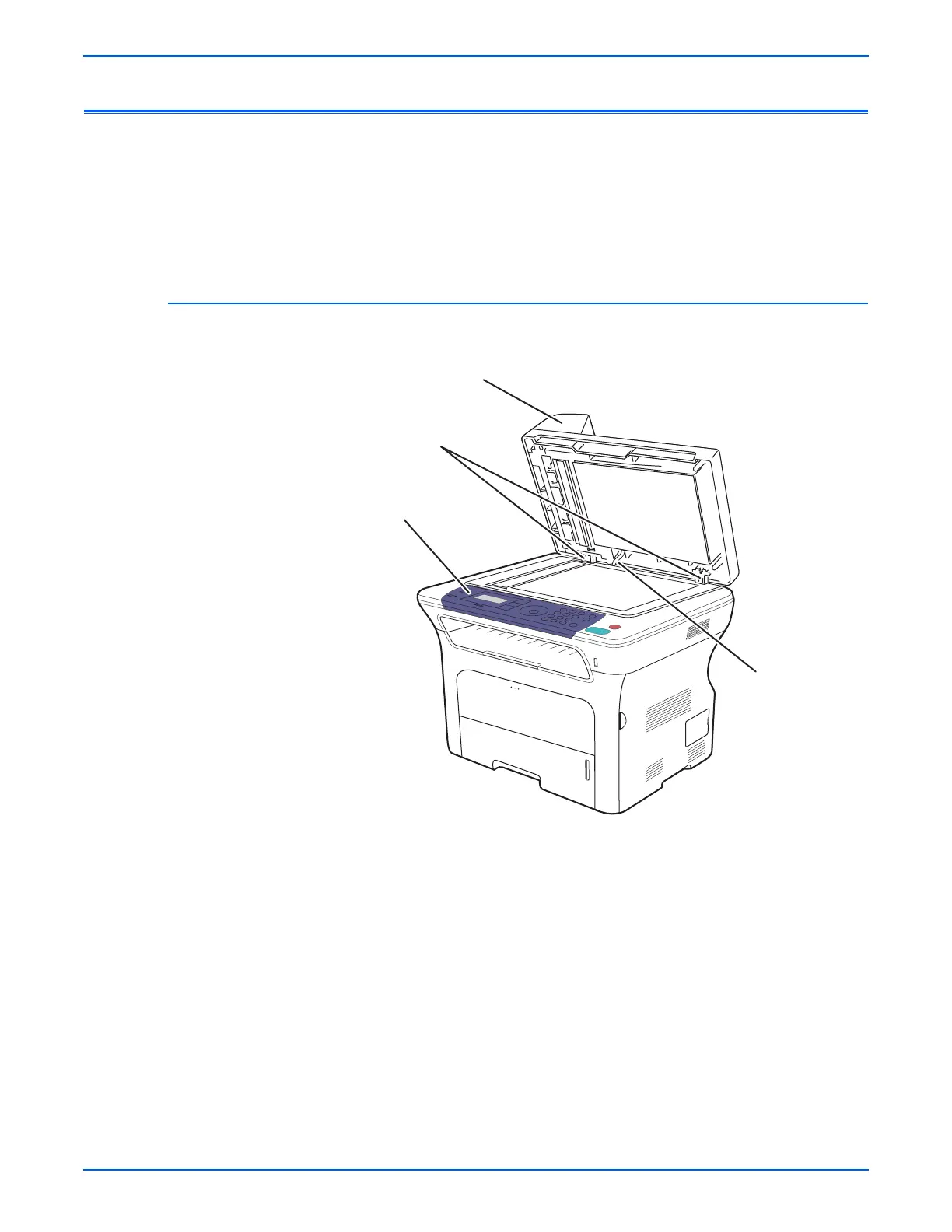

ADF Assembly
ADF Hinges
Control Panel
ADF Connector
s3210mfp-130

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
