8-56 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
USB Host PBA
PL6.3.1-11
1. Remove the Control Panel (page 8-67).
2. Disconnect the USB Host PBA Cable.
3. Remove 1 screw (12 mm, silver) that secures the USB Host PBA.
4. Remove the USB Host PBA.

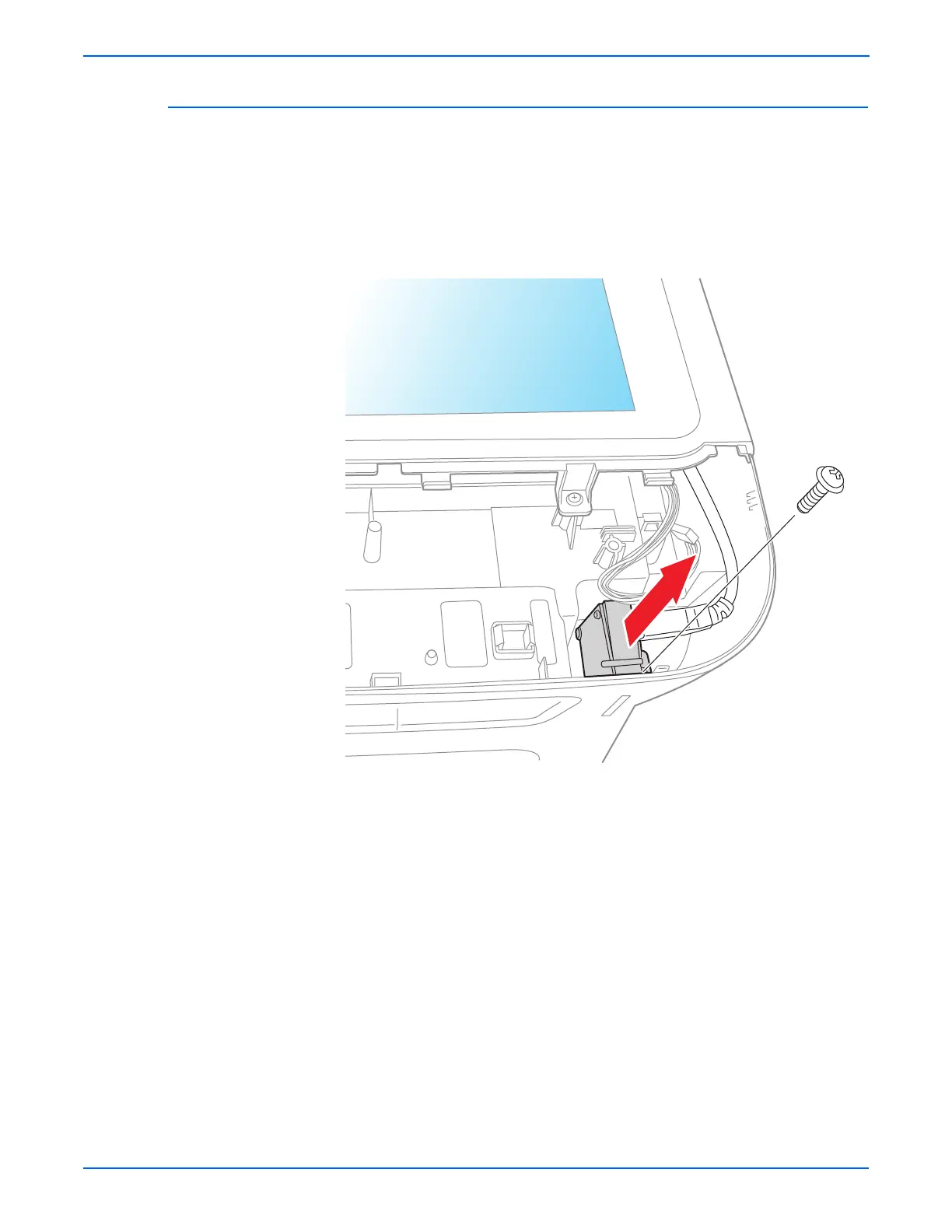

s3210mfp-173
