Xerox WorkCentre 3220 Service Manual

2-14 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation

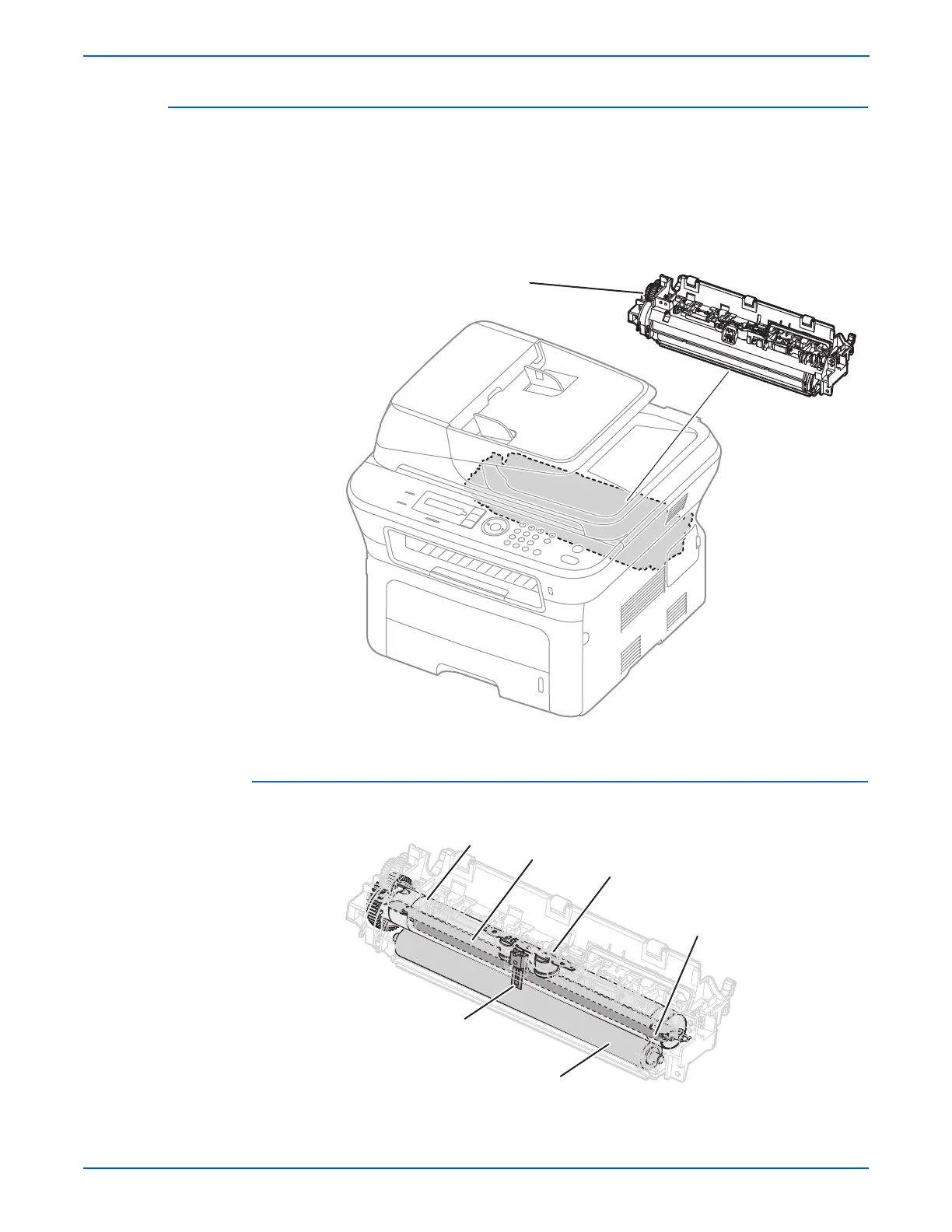

Fuser
The Fuser consists of one Halogen Lamp, one Heat Roller, two Pressure
Rollers, one Thermistor, one Thermostat and the Exit Sensor. The Halogen
Lamp heats the Heat Roller melting the toner. The large and Small Pressure
Rollers adhere the melted toner to the media surface. The thermistor and
Thermostat monitor Fuser operating temperature.
Fuser power = 750 Watt ± 5%
Fuser Components
Fuser
s3210mfp-135
Thermistor
Thermostat
Heat Roller
Pressure Roller
Halogen Lamp
(inside Heat Roller)
Pressure Roller
(behind Heat Roller)
s3210mfp-012

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
