Xerox WorkCentre 3220 - Fax Board

8-106 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Fax Board
PL1.0.24
1. Remove the Scanner Assembly (page 8-48).

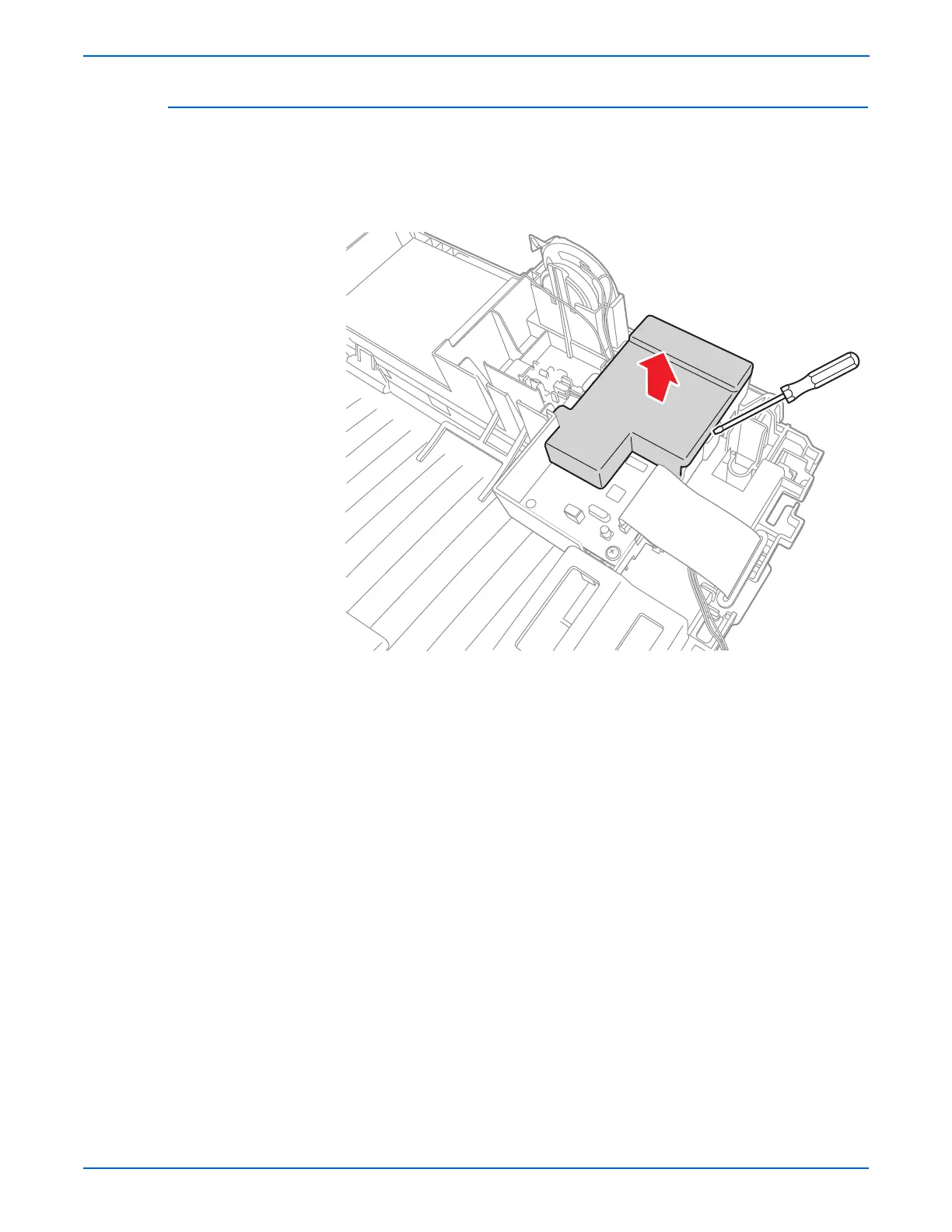

2. Use a flat tip screwdriver to remove the fax board cover.
s3120mfp-176
