Xerox WorkCentre 3220 - Zenor PBA

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-109
Service Parts Disassembly
Zenor PBA
PL4.0.3
1. Remove the Middle Cover (page 8-65).
2. Remove the Controller Shield (page 8-112).

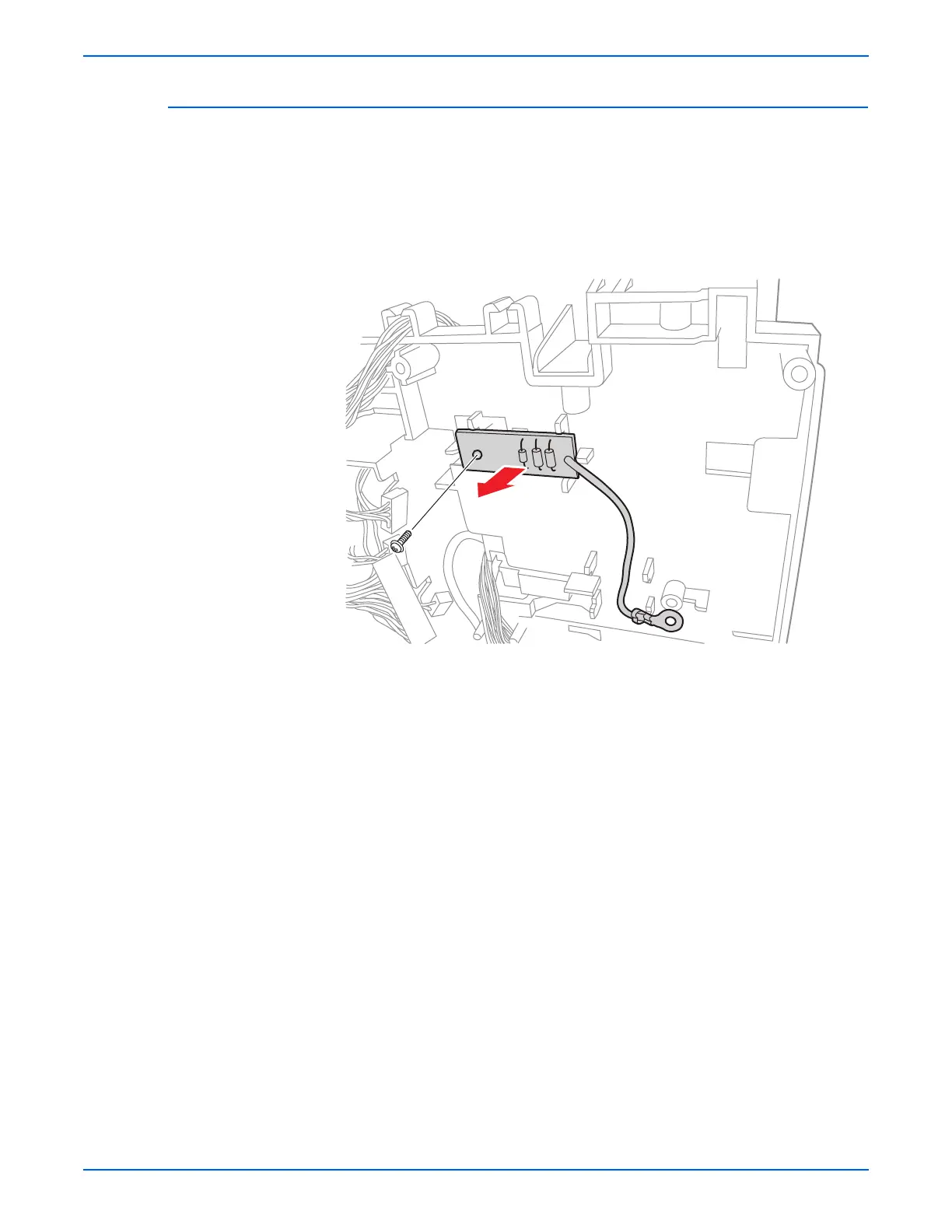

3. Remove 1 screw (12 mm, silver) that secures the Zenor PBA.
4. Remove the Zenor PBA.
s3210mfp-075
