WorkCentre 3210/3220 Multifunction Printer Service Manual 8-113
Service Parts Disassembly
Power Supply Shield
PL4.0.64

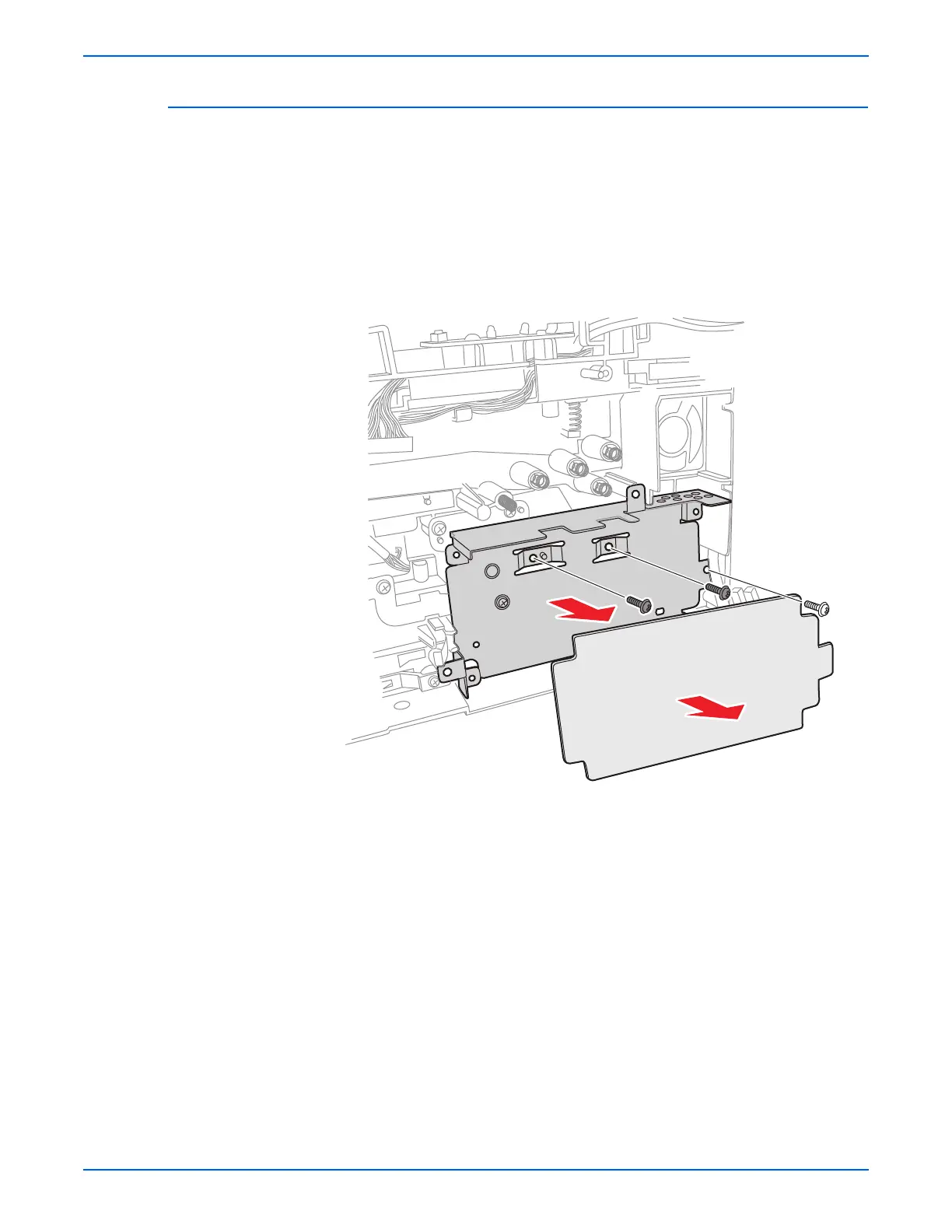

1. Remove the HVPS (page 8-101).
2. Remove the Power Supply (page 8-104).
3. Remove the power supply insulation.
4. Remove 1 screw (12 mm, silver) that secures the ground wire and 2
screws (12 mm, black) securing the Power Supply Shield.
5. Remove the Power Supply Shield.
