Xerox WorkCentre 3220 - Exit Guide; Rear Guide Unit

WorkCentre 3210/3220 Multifunction Printer Service Manual 8-97
Service Parts Disassembly
Exit Guide
Rear Guide Unit
PL4.0.114
Warning
Allow the Fuser to cool before performing this procedure.
1. Remove the Duplex Unit (page 8-69).
2. Open the Rear Cover.
3. Open the Rear Guide Unit.

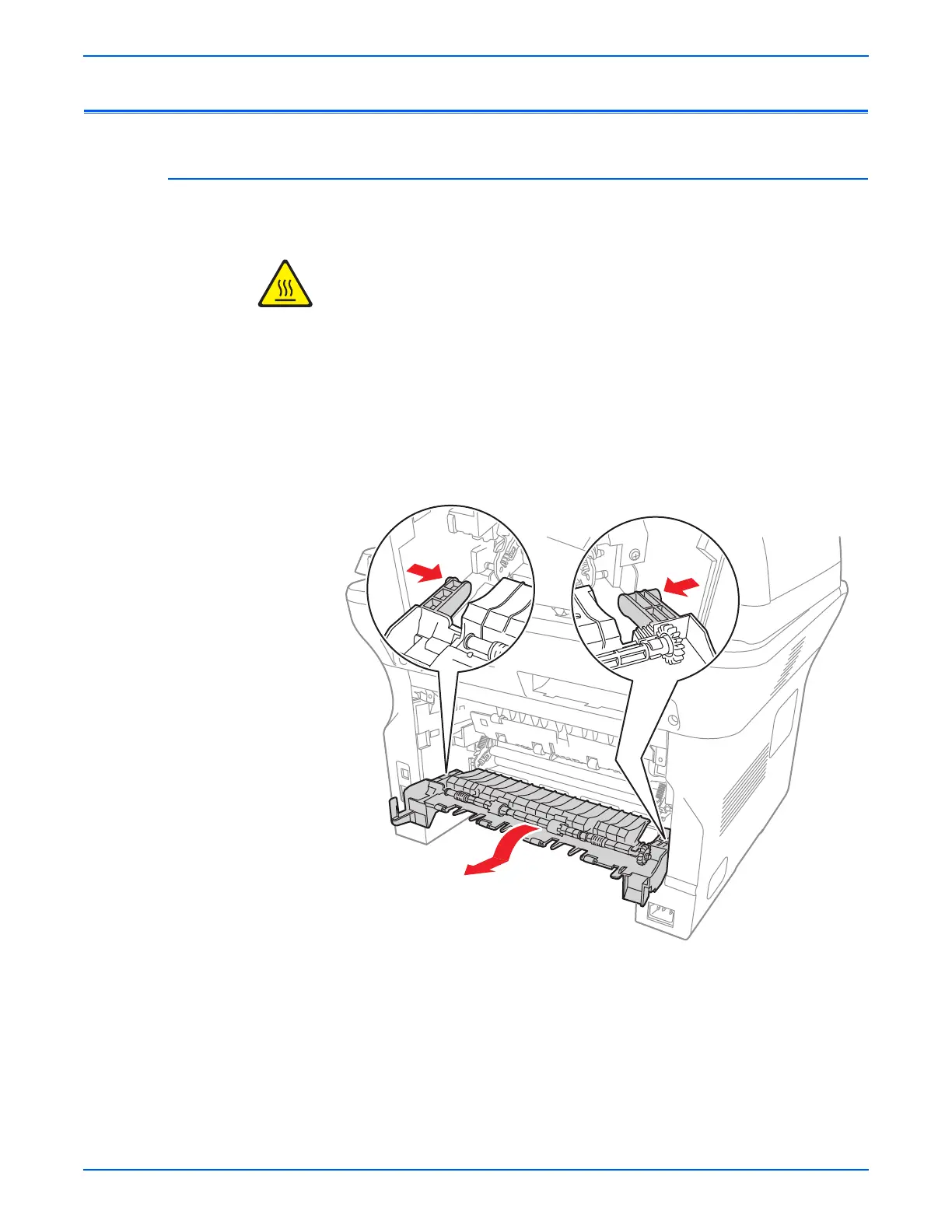

4. Push the Rear Guide Unit toward one side to release the notch from the
printer frame.
5. Slide the Rear Guide Unit out and remove the Guide Unit.
s3210mfp-126
