WorkCentre 3210/3220 Multifunction Printer Service Manual 2-3
Theory of Operation

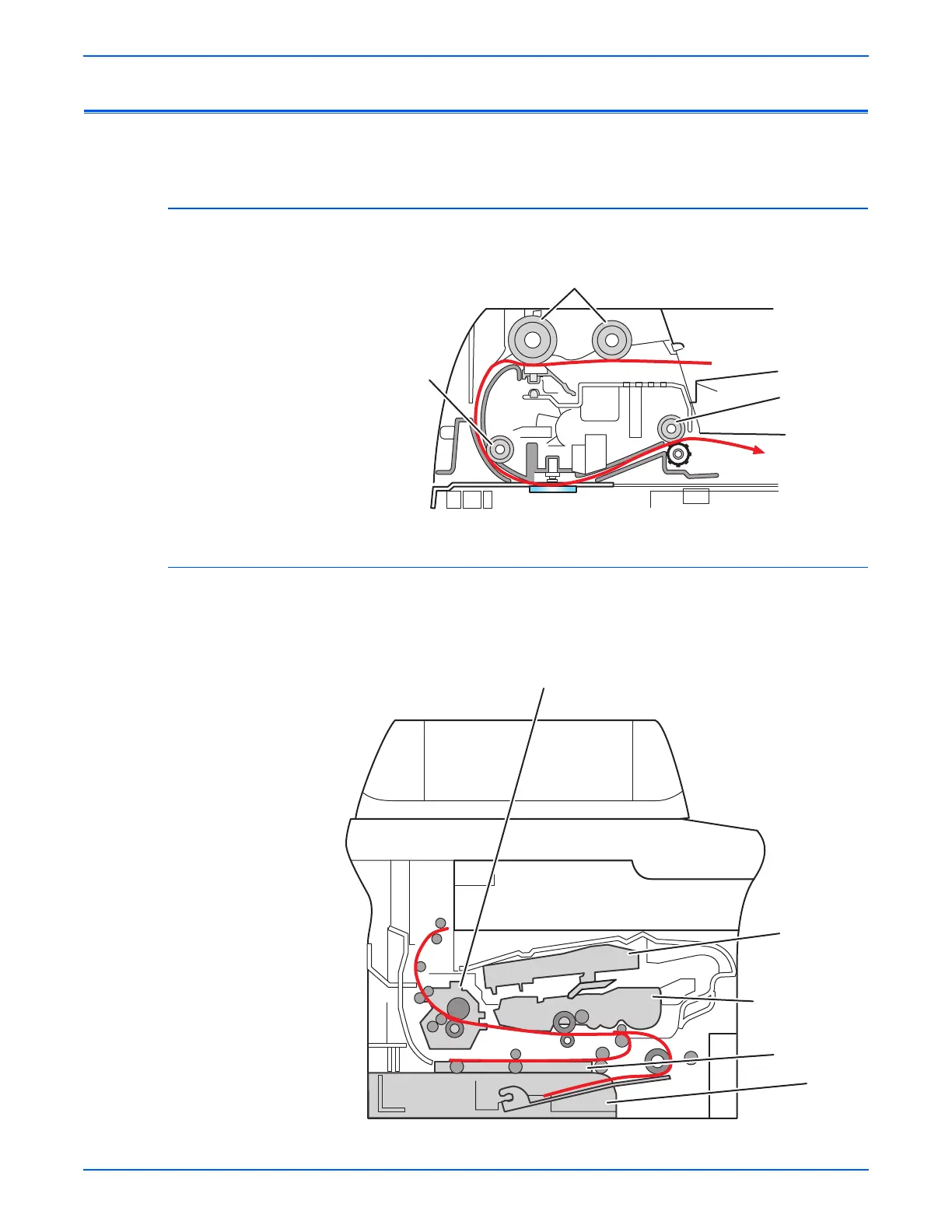

Paper Path
The following describes how media is transported through the printer.
ADF
Media is transported through the ADF by these components.
Printer
The media supplied from the Tray 1, or Tray 2, is transported through the
printer as shown in the illustrations below. Media fed from the manual feed
slot enters the media path at the registration roller.
ADF Feeder Assembly
ADF Feed Roller
Pinch Roller
s3210mfp-113
Laser Unit
Print Cartridge
Fuser
Duplex Unit
Tray 2
s3210mfp-112
