Xerox WorkCentre 3220 Service Manual

8-42 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Platen Cover
PL6.1.9

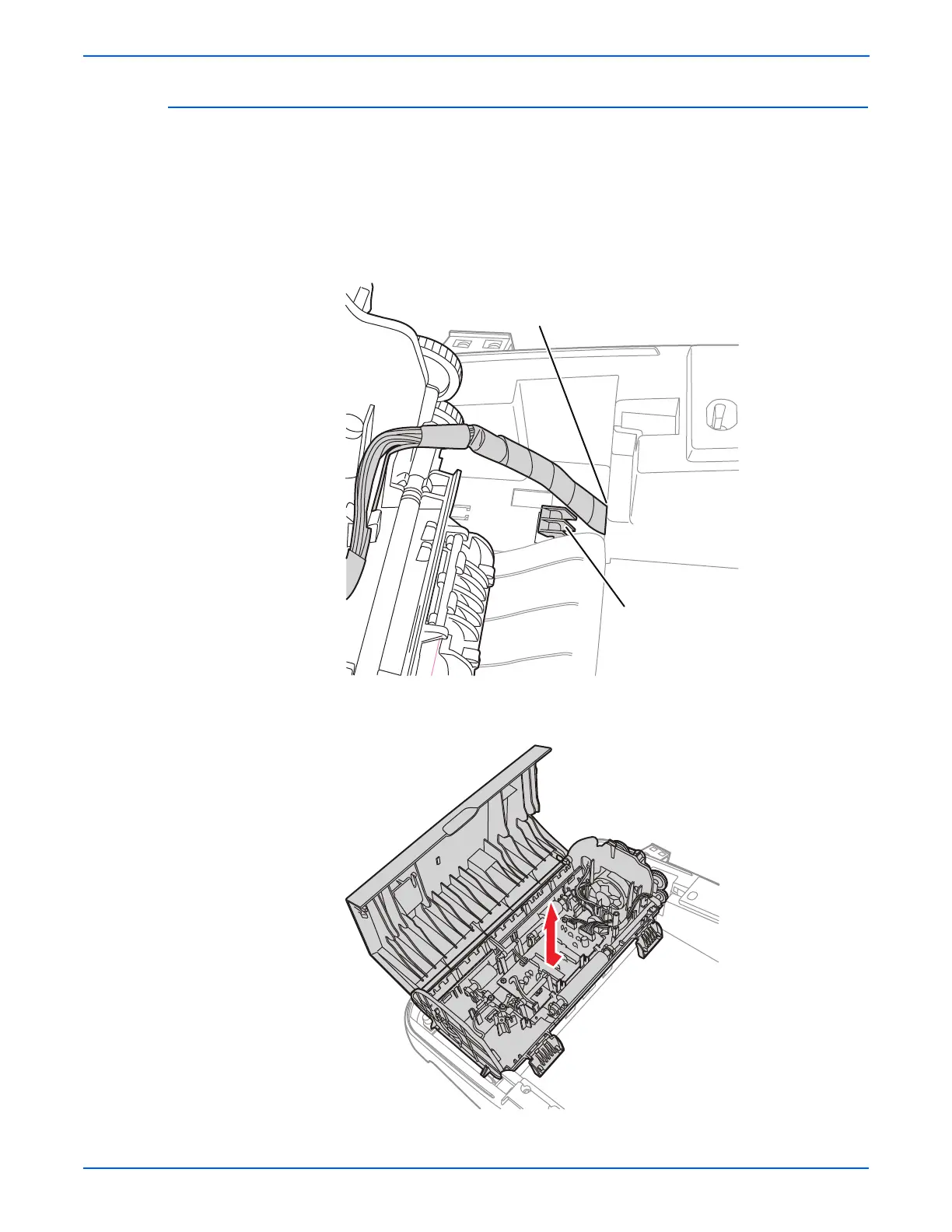

1. Remove the Upper ADF (page 8-40).
2. Remove the Lower ADF (page 8-36), steps 1-2.
3. Push the lower ADF toward the left to release the lower ADF from the
hook and lift the lower ADF while routing the cable through the hole on the
Platen Cover.
4. Remove the lower ADF from the Platen Cover.
Hole
Hook
s3210mfp-163
s3210mfp-226

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
