8-44 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Platen Cover Hinge
PL6.2.2
1. Remove the ADF (page 8-31).
2. Turn the ADF over with the bottom facing upward.

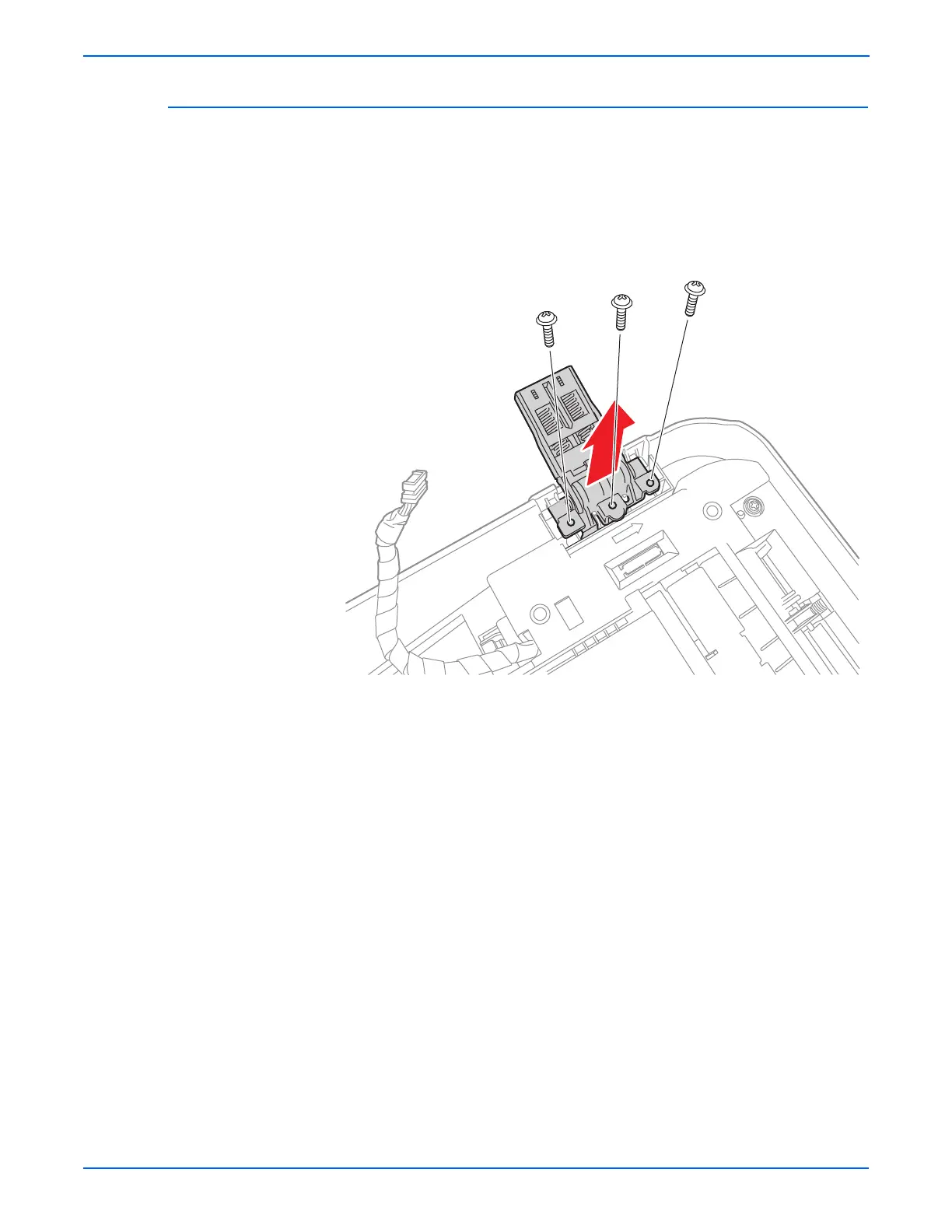

3. Remove 3 screws (12 mm, silver) that secure the Platen Cover Hinge.
4. Remove the Platen Cover Hinge.
To Next Page
