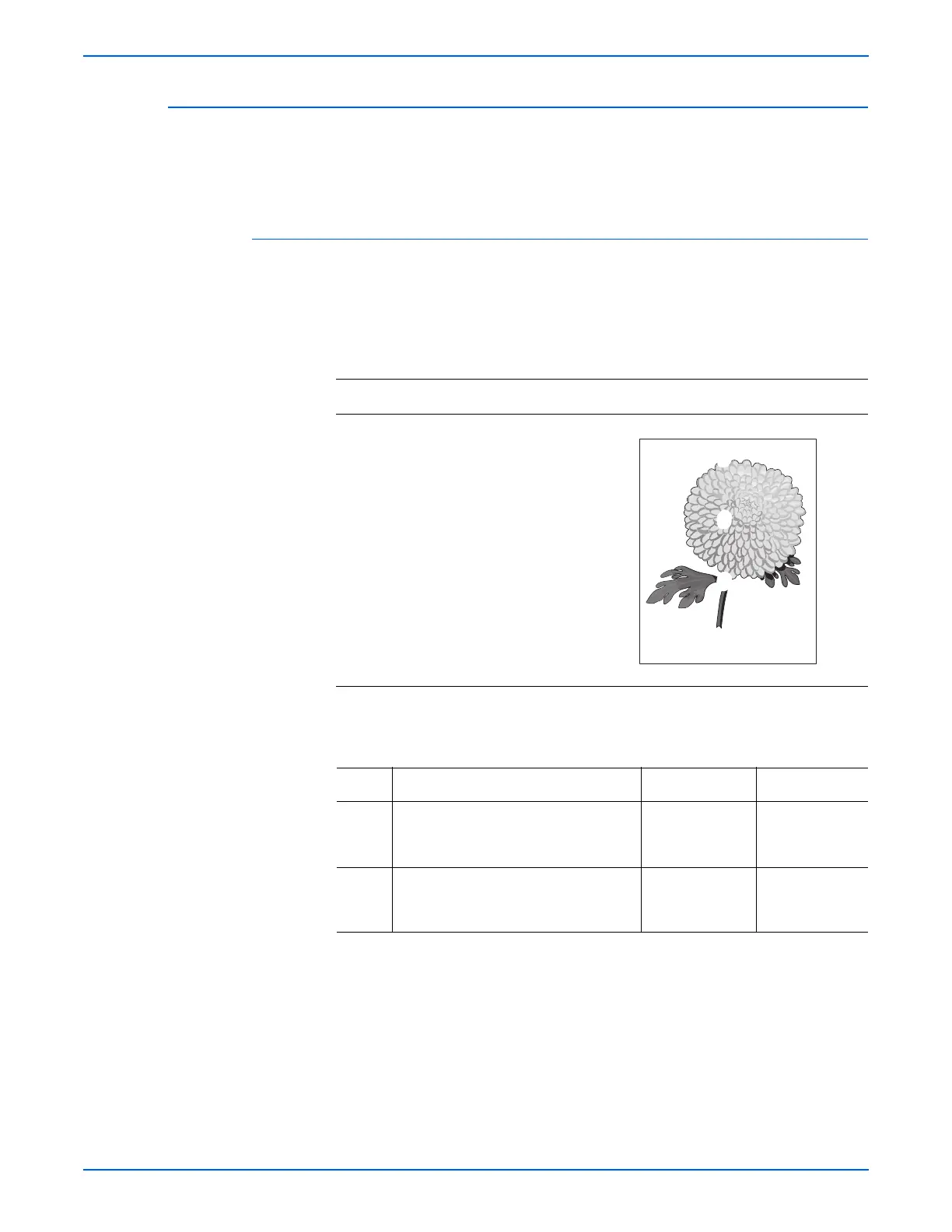

Print-Quality Troubleshooting
Stains on the Front of the Page
The background of the front of the page is stained. This could indicate toner
leakage from the Print Cartridge or damage or debris on the Transfer Roller
surface.
Initial Actions
■ Check for toner leakage from the Print Cartridge.
■ Run the Clean Drum procedure from the Maintenance menu.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.0.11
■ Print Cartridge, PL1.0.21
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the Transfer Roller for
contamination.
Is the Transfer Roller surface dirty?
Perform Clean
Drum
procedure.
Go to step 2.
2 Check the Print Cartridge for damage
or leakage.
Is the Print Cartridge damaged?
Replace the
Print Cartridge
(8-7).
Complete.
Repeating Defects

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
