WorkCentre 3210/3220 Multifunction Printer Service Manual 5-35
Print-Quality Troubleshooting

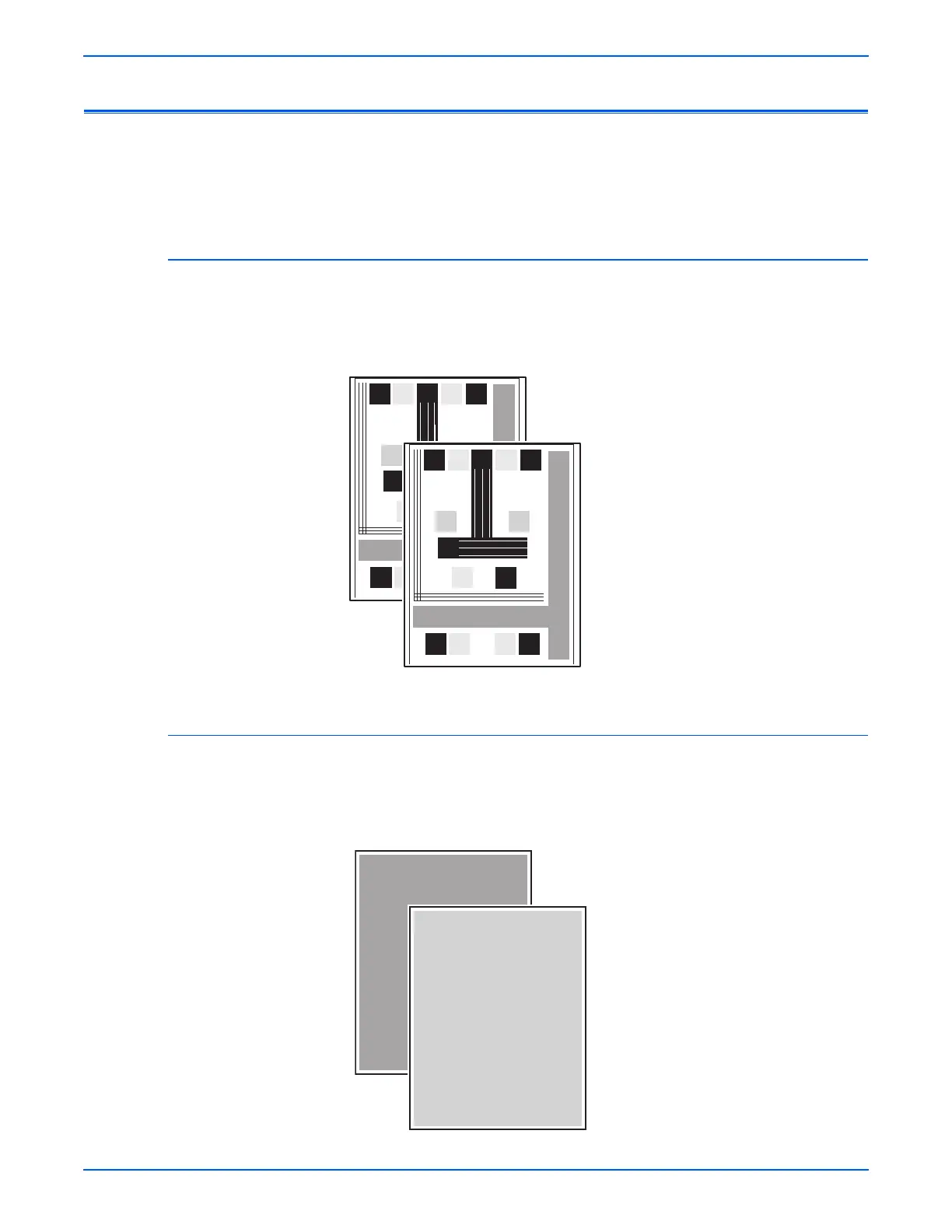

Test Prints
This section provides a sample of the test patterns available from the Tech
mode menu. These test prints highlight possible performance problems and
can help isolate the location of print problems.
TP 1 and 2 Lines
TP 1 and 2 provides a variety of different line styles in both process and cross-
process directions. The pattern is used to check registration, dot size and
image density.
TP 3 and 4 Halftones
TP 3 and TP 4 are halftones used to check for dropout (white spot)
performance, banding, fixing (fusing) and image density. TP 4 includes a
margin line.
1 x 4
1 x 4
1 x 4 1 x 4
2 x 2
1 x 2
1 x 2
1 x 4
S600 PATTERN
Date :
Machine No.:
Temperature:
Humidity :
Tested by :
1 dot Line
4 dot Line
[2] DC:11332 TI:17 TADC:121 TV:2 TP:88 DP:193 TEMP:115
s3210mfp-199
1 x 4
1 x 4
1 x 4 1 x 4
2 x 2
1 x 2
1 x 2
1 x 4
S600 PATTERN
Date :
Machine No.:
Temperature:
Humidity :
Tested by :
1 dot Line
4 dot Line
[2] DC:11332 TI:17 TADC:121 TV:2 TP:88 DP:193 TEMP:115
s3210mfp-200
