8-126 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

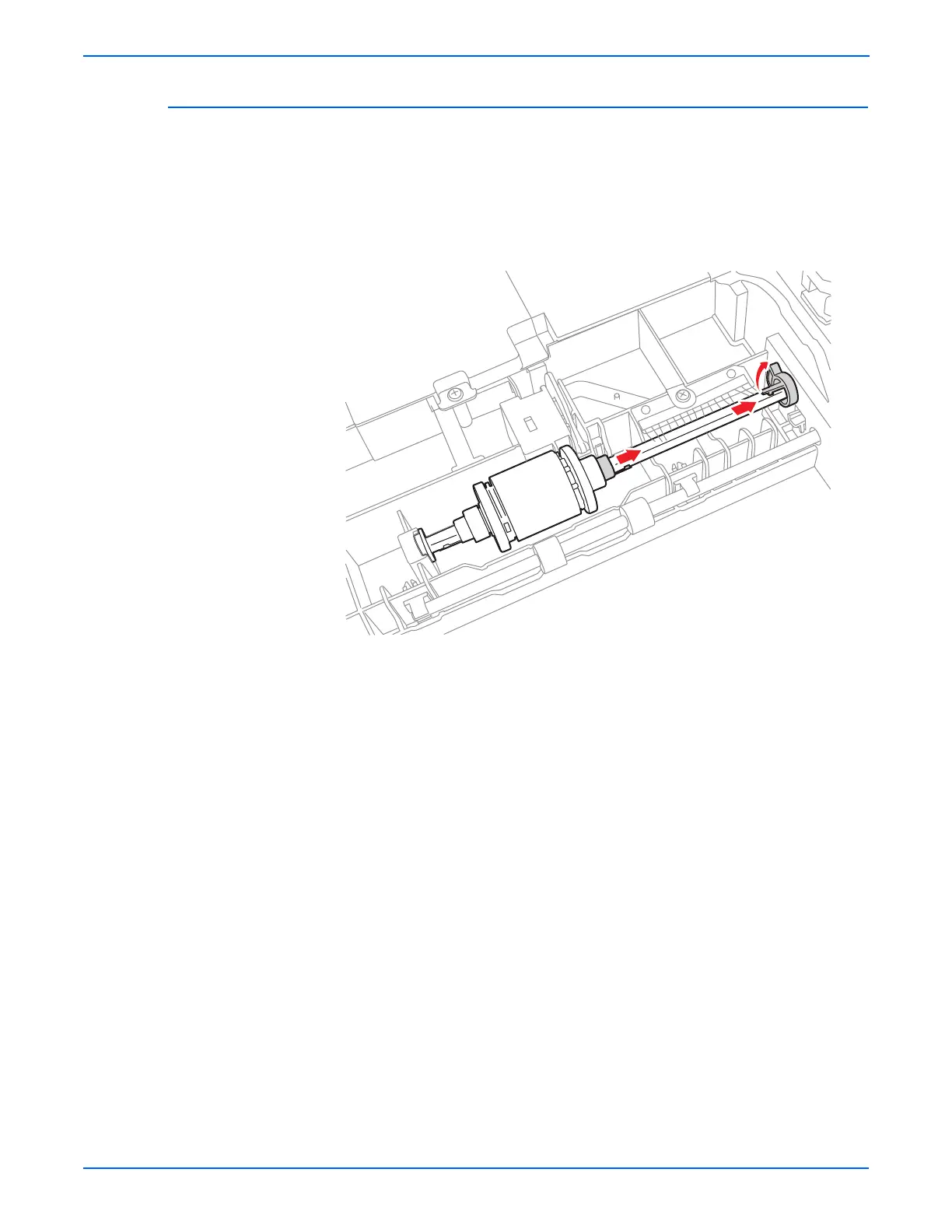

Pick Up Roll Retainer
PL10.0.11-18
1. Remove the Feed Roller (page 8-127).
2. Release the clip from the shaft while pushing the shaft toward the motor
side.
3. Remove the Pick Up Roll Retainer.
s3210mfp-242
