WorkCentre 3210/3220 Multifunction Printer Service Manual 8-125
Service Parts Disassembly
5. Turn the Optional Tray Assembly over.
6. Remove the Left Cover (page 8-119).
7. Remove the Motor Housing (page 8-120).

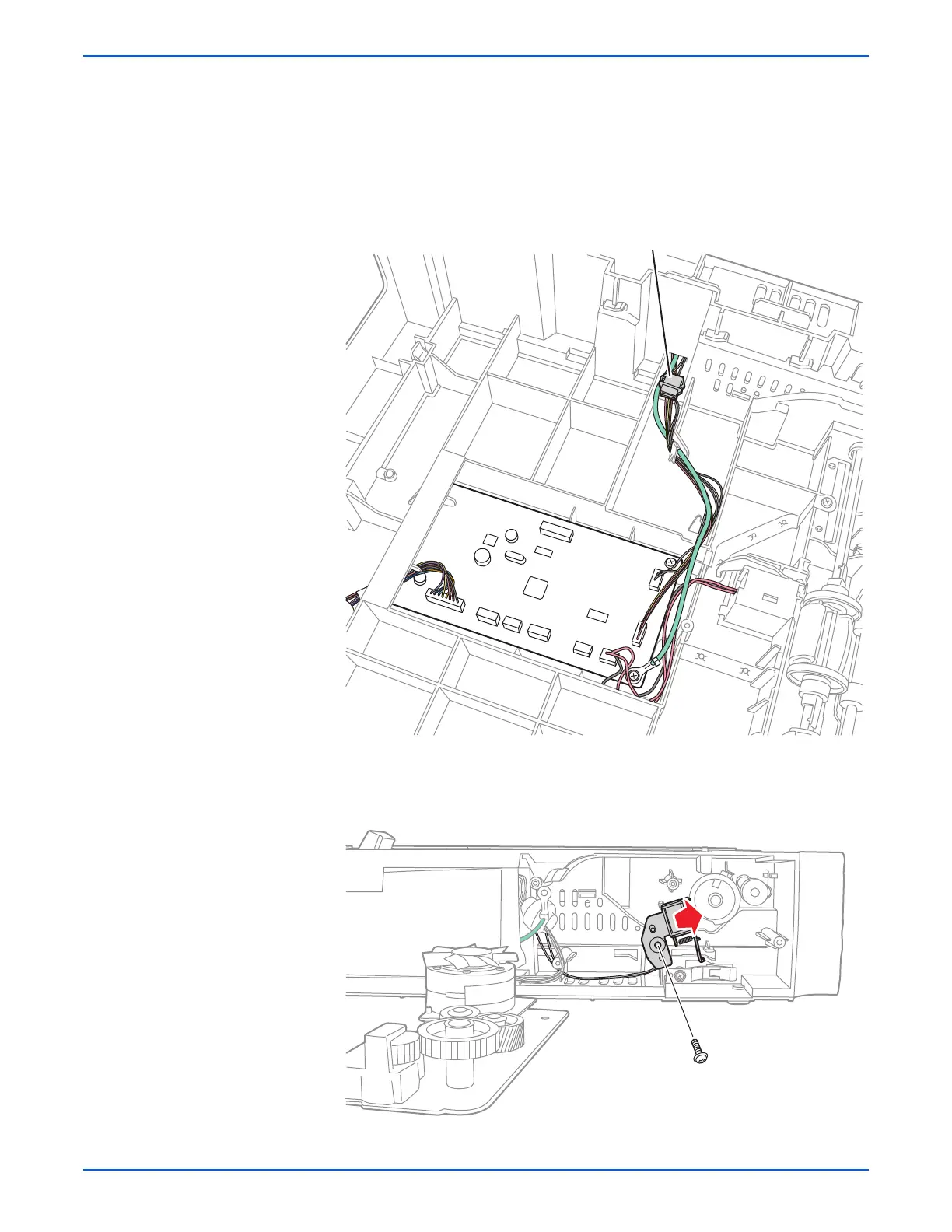

8. Disconnect the Solenoid wiring harness connector CN56.
9. Push the harness into the tray cavity.
10. Disconnect the wiring harness from the dual female connector.
11. Remove 1 screw (12 mm, silver) that secures the Solenoid.
12. Remove the Solenoid.
To Next Page
