Xerox WorkCentre 3220 Service Manual

WorkCentre 3210/3220 Multifunction Printer Service Manual 5-31

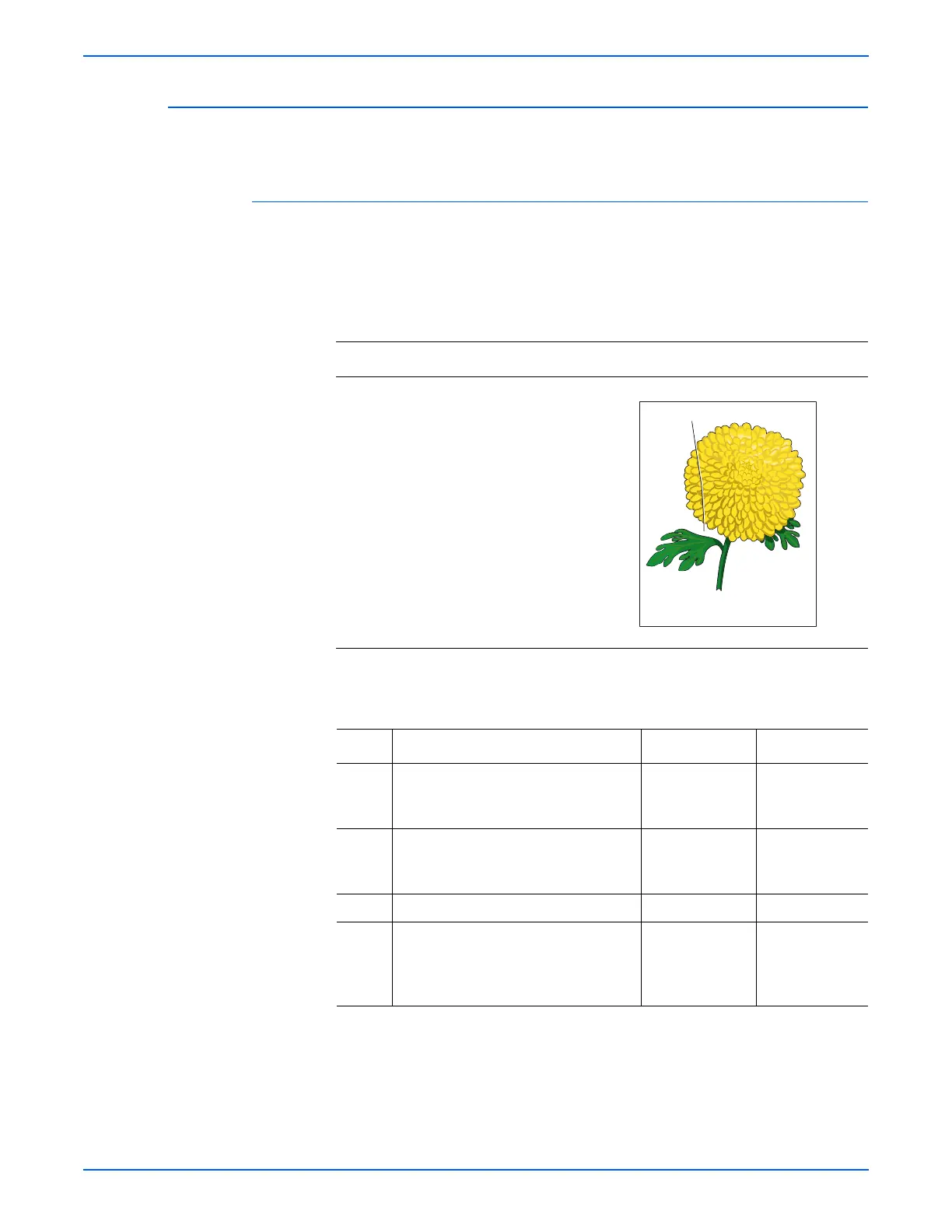

Print-Quality Troubleshooting
Lines or Streaks from ADF
There are lines or streaks on copies from the ADF.
Initial Actions
■ Clean and check the platen glass.
■ Inspect the original.
Troubleshooting Reference Table
Applicable Parts Example Print
■ ADF Scan Assembly, PL6.0.0
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the original document.
Are there lines or streaks on the
original?
Replace the
original
document.
Go to step 2.
2 Is the platen glass clean? Go to step 3. Clean the platen
glass using a
lint-free cloth.
3 Does the image quality improve? Complete. Go to step 4.
4 Are there scratches on the platen
glass?
Replace the ADF
Scanner
Assembly
(
8-129).
Complete.
Scratch on Glass

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
