Xerox WorkCentre 3220 Service Manual

8-90 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
Feed Roller
PL4.0.83

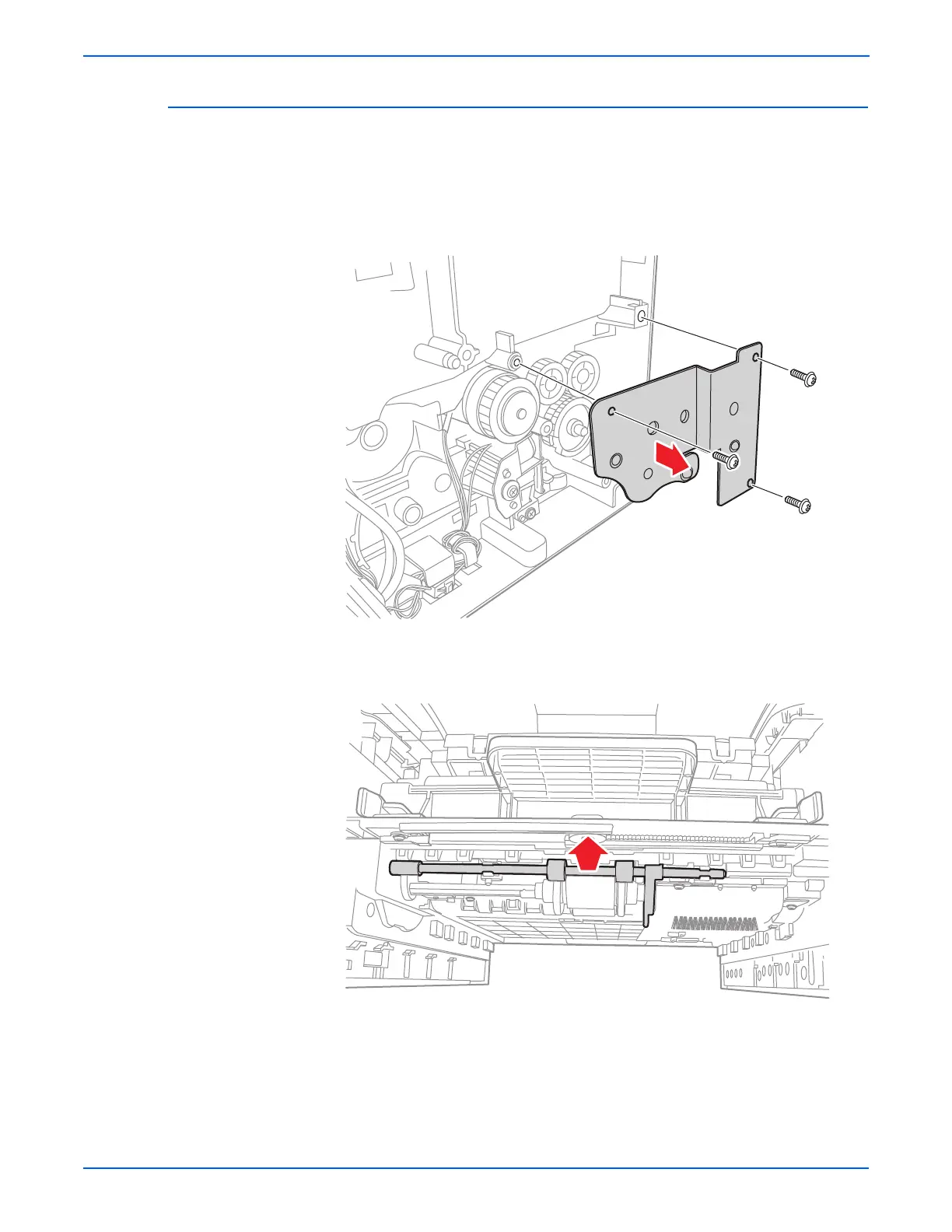

1. Remove the Drive Assembly (page 8-98).
2. Remove 3 screws (12 mm, silver) that secure the feed bracket.
3. Remove the feed bracket.
4. Remove the exit idle gear and the feed gear.
5. Release the Feed Roller from the clips and remove the Feed Roller.
s3210mfp-046
s3210mfp-045
