8-96 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly
CRUM Terminal
PL4.0.53

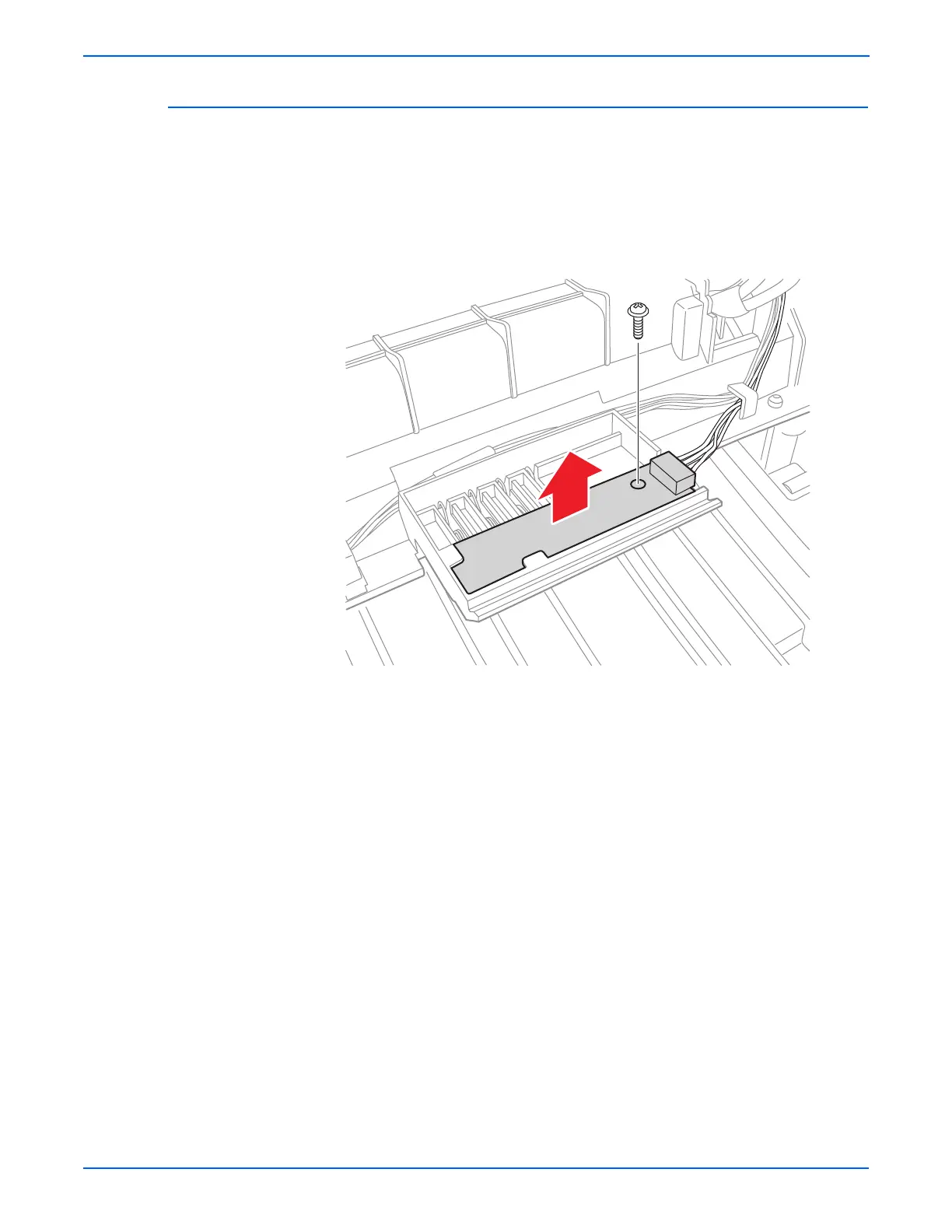

1. Remove the Laser Unit (page 8-95).
2. Disconnect the CRUM Terminal wiring harness connector.
3. Remove 1 screw (12 mm, silver) that secures the CRUM Terminal.
4. Remove the CRUM Terminal.
