WorkCentre 3210/3220 Multifunction Printer Service Manual 8-65
Service Parts Disassembly
Middle Cover
PL3.0
1. Remove the Print Cartridge (page 8-8).
2. Remove the Left Cover (page 8-59).
3. Remove the Scanner Assembly (page 8-48).
4. Disconnect the wiring harness connectors CN4 and CN45.

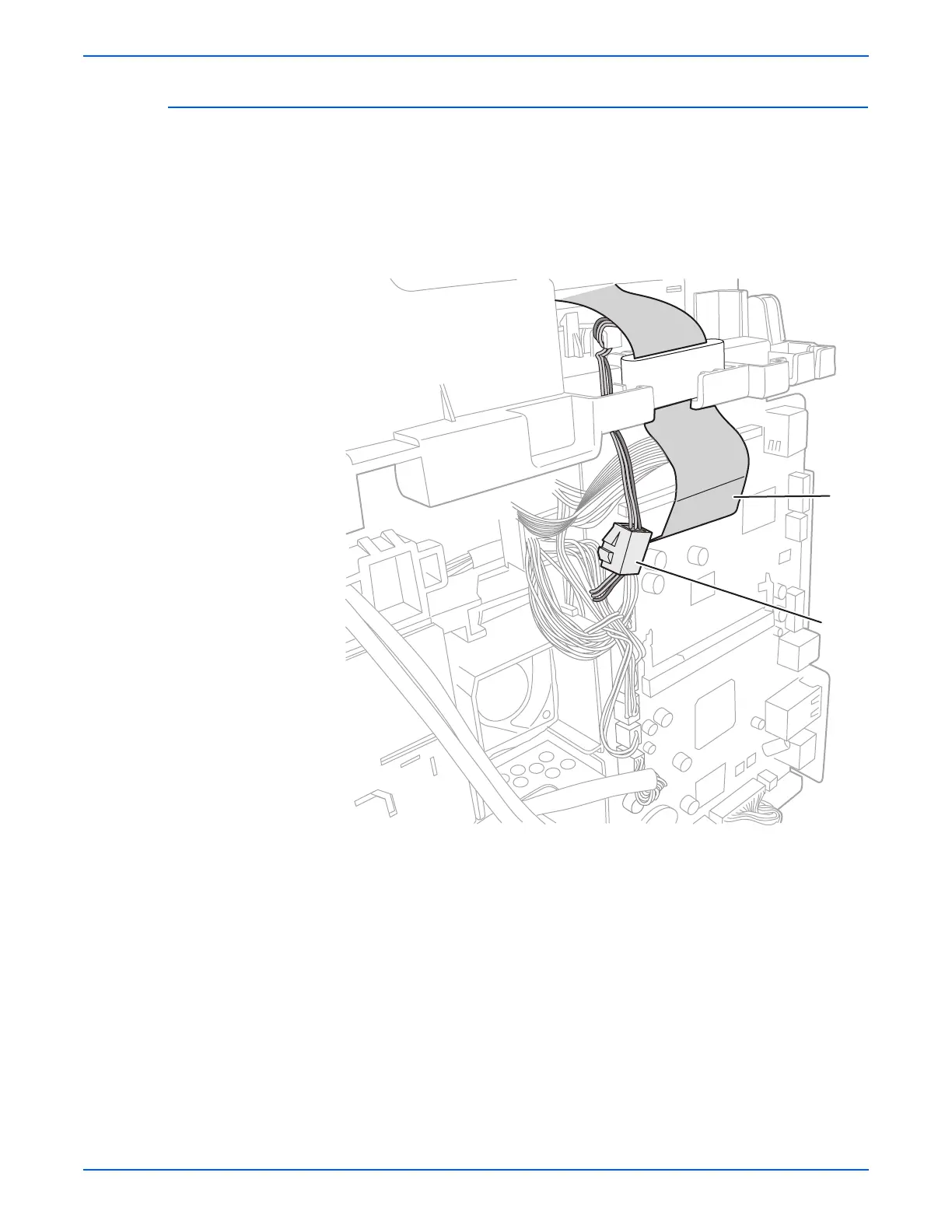

s3210mfp-188
CN45
CN4
