8-66 WorkCentre 3210/3220 Multifunction Printer Service Manual
Service Parts Disassembly

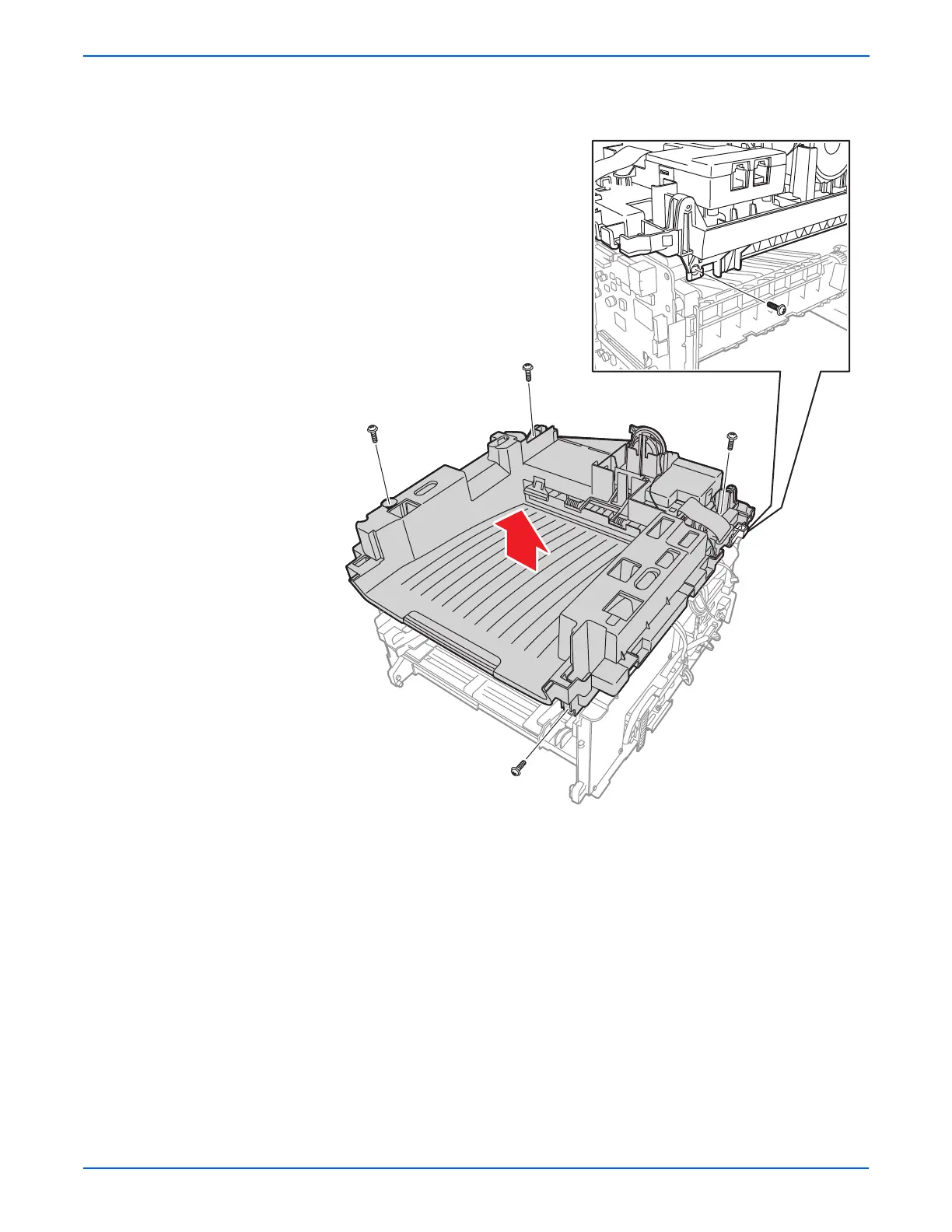

5. Remove 5 screws (12 mm, silver) that secure the Middle Cover.
6. Lift and remove the Middle Cover.
s3210mfp-166
