Xerox WorkCentre 3220 Service Manual

1-4 WorkCentre 3210/3220 Multifunction Printer Service Manual
General Information
Parts of the Printer

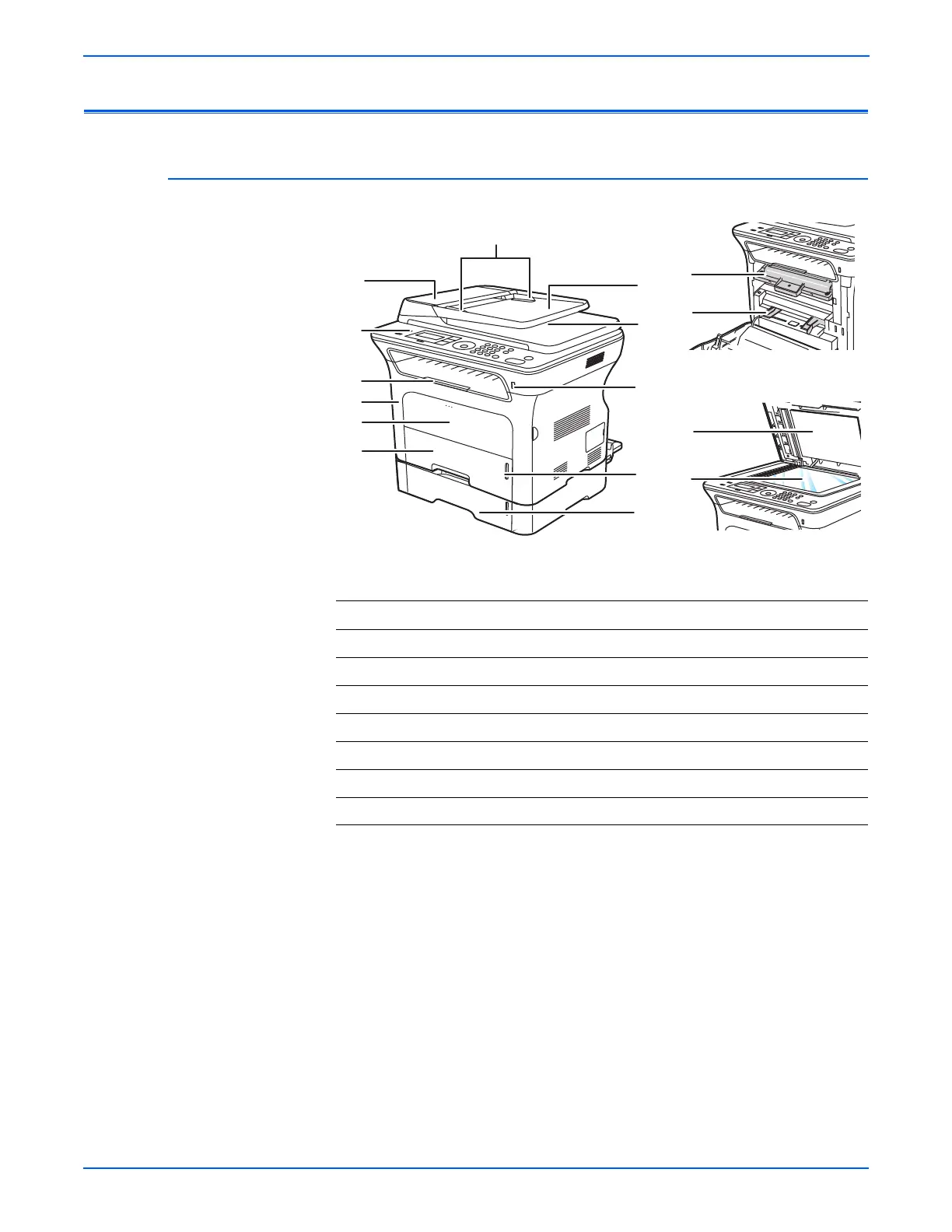

Front View
1. ADF Guides 9. Front Cover
2. ADF Input Tray 10. Output Support
3. ADF Output Tray 11. Control Panel
4. USB Port 12. ADF Cover
5. Paper Level Indicator 13. Print Cartridge
6. Optional Tray Assembly 14. Manual Feeder with Guides
7. Tray 1 15. Scanner Lid
8. Manual Tray 16. Document Glass
1
2
3
4
5
6
7
8
9
10
11
12
15
16
s3210mfp-081
13
14

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
