Xerox WorkCentre 3220 Service Manual

2-2 WorkCentre 3210/3220 Multifunction Printer Service Manual
Theory of Operation
Operational Overview
The WorkCentre 3210/3220 is a monochrome multifunction printer that uses
Laser Unit (LSU) with an electrophotographic process. The printer system
consists of one print cartridge which creates the toner image.
System Overview
The WorkCentre 3210/3220 Multifunction Printer is divided into two main
components: the Image Input Terminal (IIT - ADF and Scanner) and the
Image Output Terminal (IOT - Print Engine).

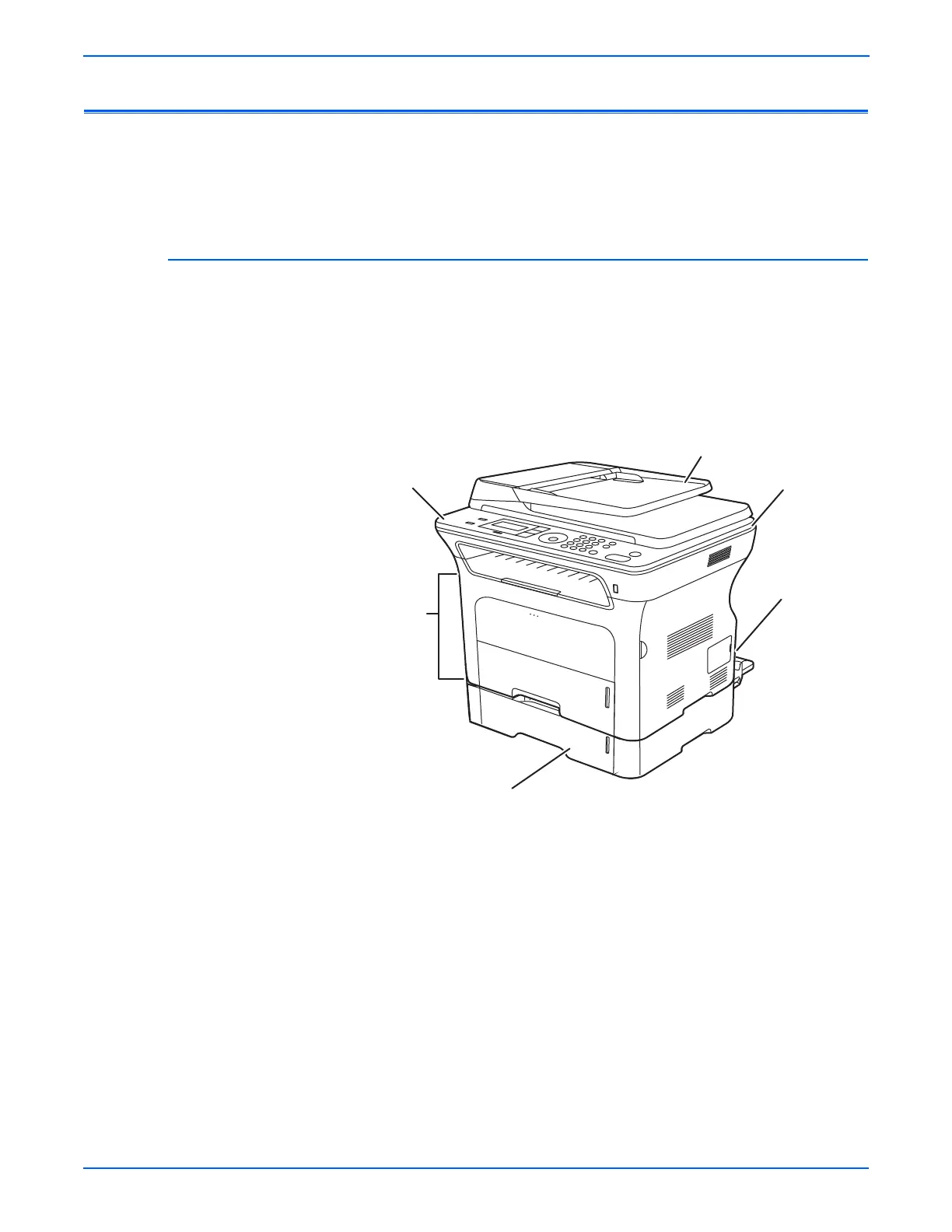

The WorkCentre 3210/3220 Multifunction Printer consists of the Automatic
Document Feeder (ADF) Assembly, Scanner Assembly, Control Panel, Print
Engine, Duplex Unit (3220 only), and Optional Tray Assembly.
s3210mfp-243
Control Panel
ADF Assembly
Scanner Assembly
Optional 250-Sheet Feeder
Duplex Unit
Print Engine

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
