WorkCentre 3210/3220 Multifunction Printer Service Manual 8-25
Service Parts Disassembly

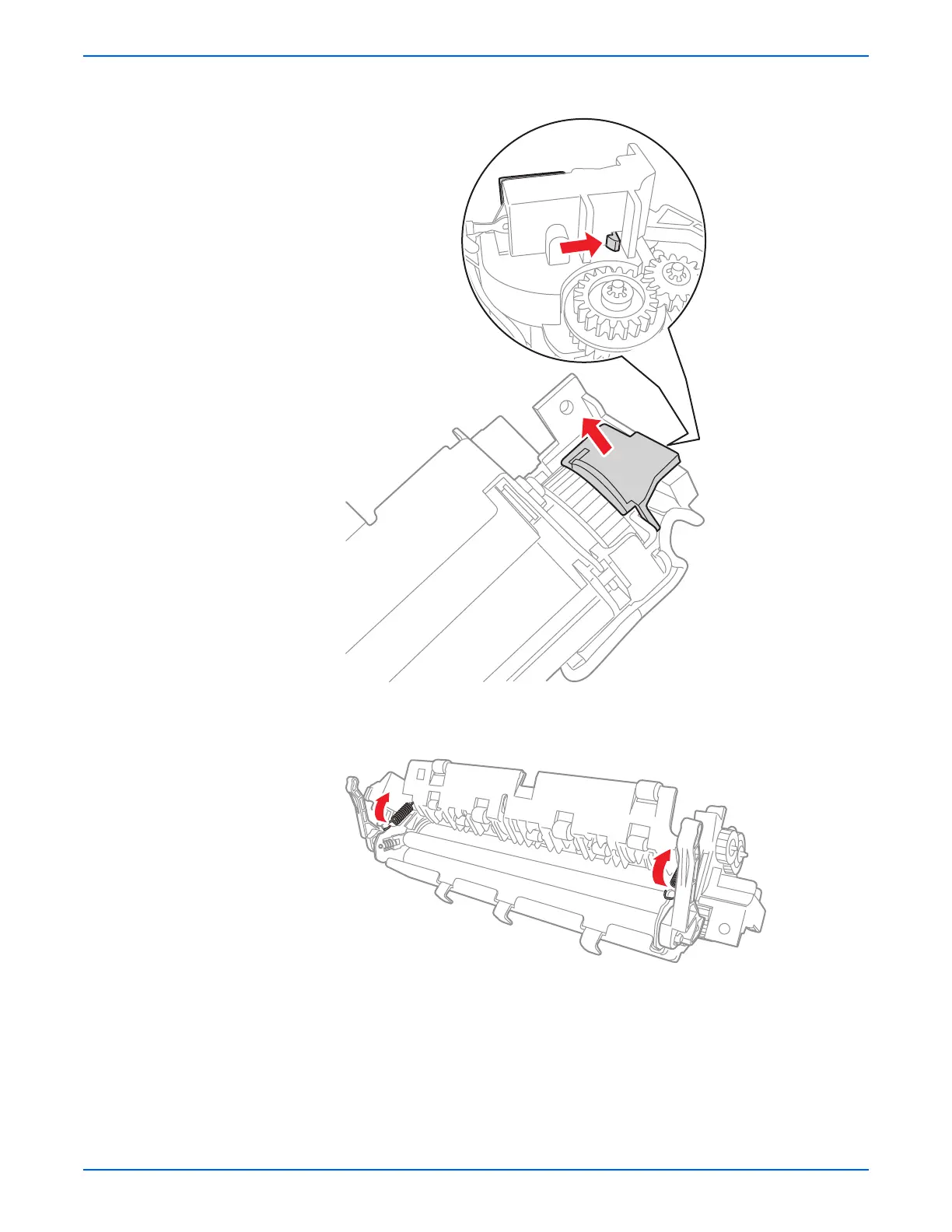

3. Release the tab and remove the left lamp cap.
4. Unhook the left and right springs that secure the fuser frame and the fuser
cover.
s3210mfp-029
s3210mfp-030
