WorkCentre 3210/3220 Multifunction Printer Service Manual 8-29
Service Parts Disassembly

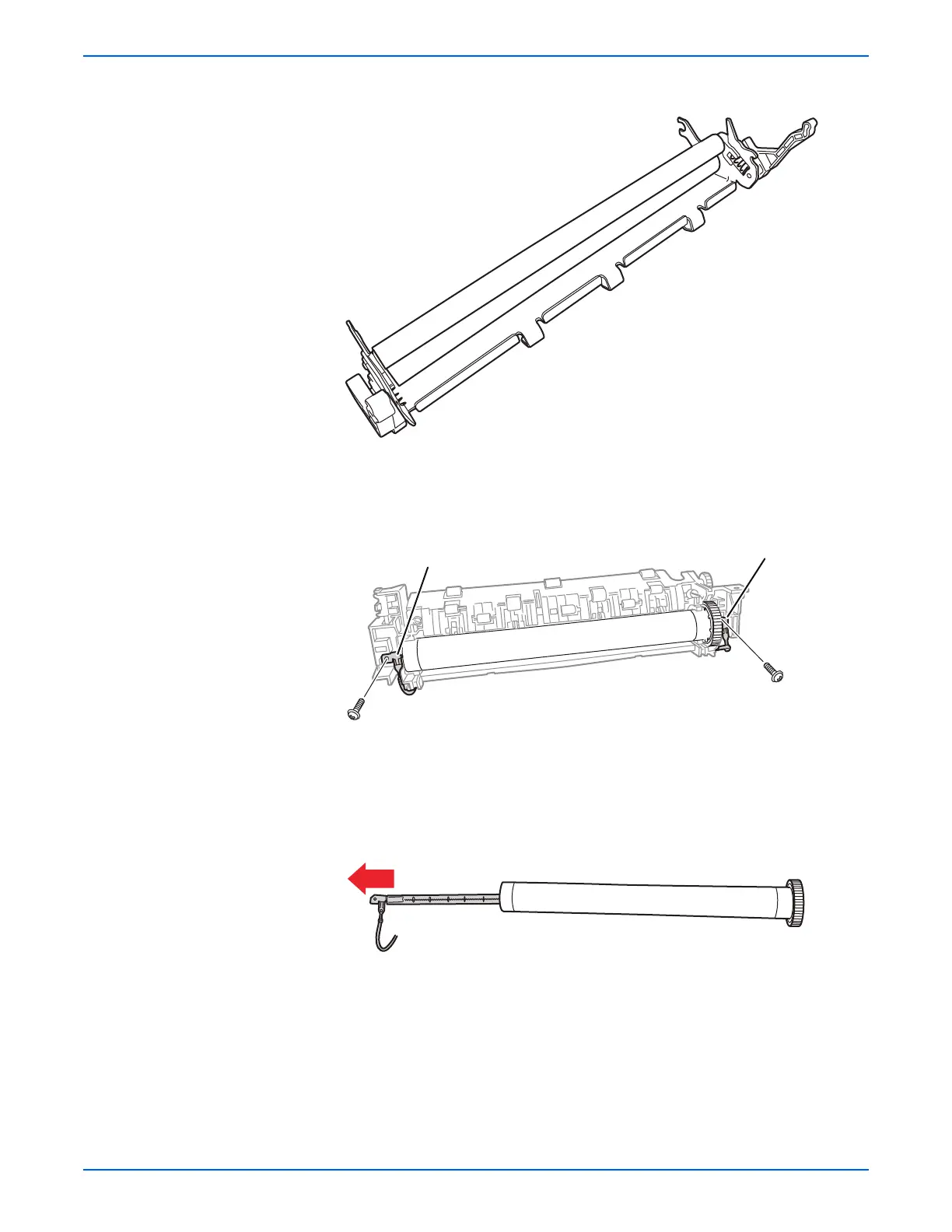

5. Remove the fuser frame with the pressure rollers from the fuser cover.
6. Disconnect the 2 lamp connectors CN51 & CN52.
7. Remove 2 screws (10 mm, black without washer) that secure the halogen
lamp to the fuser cover.
Note
Hold the Halogen Lamp by the ends so there is no transfer of oil from the
hands onto the lamp, which could damage the Lamp.
8. Slide the Halogen Lamp out away from the heat roller.
s3210mfp-031
s3210mfp-032
CN51
CN52
s3210mfp-033

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
